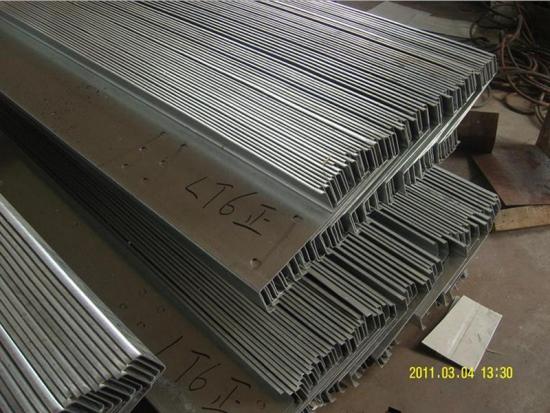

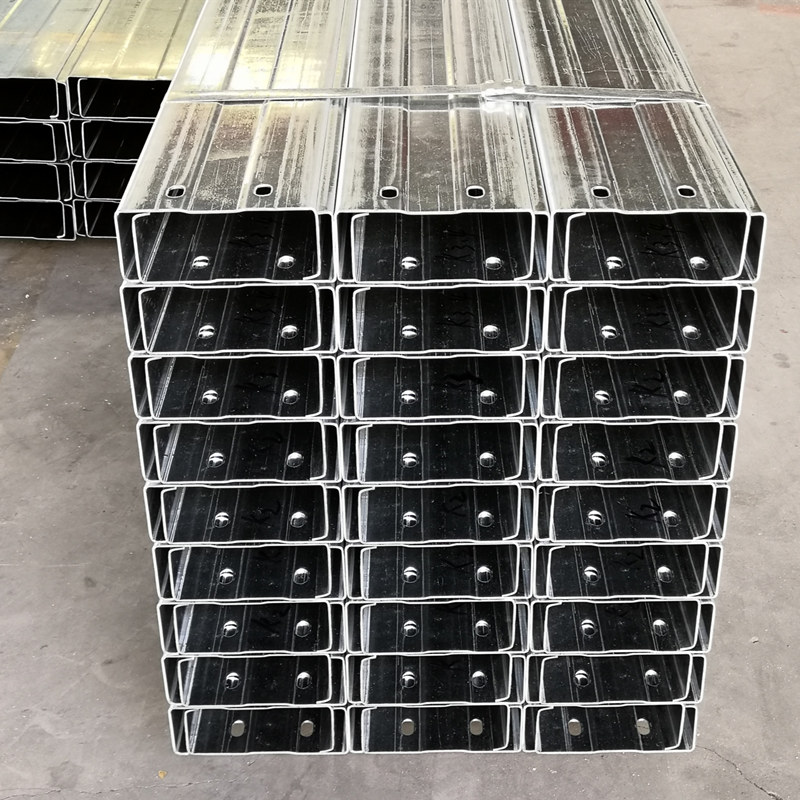

C channel is made of galvanized steel strips by the method of cold-bending formed.The surface treatment is galvanized or bared. It has many advantages compared with traditional structural steel, such as light weight, excellent performance cross-section, high-strength and so on.
C channel purlin highlights
☆ Different kinds of standards for choices:
We could follow your required standards,GB,ASTM,AS,EN standards.
☆ Wide size ranges for your project:
Currently we have wide range of C profile sizes for your choices,we can also follow your special size requirement.
☆ High quality guarantee:
Our C section frames and girts are manufactured from high tensile steel for increased strength and lightweight.The material brand could be appointed,like Bao steel brand,Shougang brand,Tanggang brand,etc.
☆ Fast service:
Yumisteel can offer you an exceptionally fast service.Production time for small orders(10-30tons),our lead time is 5-10days,for big order amount,we will offer you a fast and best delivery time,too.Usually it won't longer than 30 days.
☆ Competitive Price:
Technical representatives with rich exprience are able to advise you on pricing and delivery requirements. Our pricing is competitive, and we only ask for an opportunity to offer a price for your next project.
C purlin production process has three stages,material preparation and equipment preparation and processing.
| C purlin sectional size range | ||||
| Model NO. | H×B1×B2×C(mm) | Thickness(mm) | Hole distance(mm) | Length(m) |
| C80 | 80×40×40×15 | 2.0-3.0 | No holes | Max 5.8m for 20GP;11.8m for 40GP/HQ |
| C100 | 100×50×50×20 | 2.0-3.0 | 40 | |
| C120 | 120×50×50×20 | 2.0-3.0 | Adjustable | |
| C140 | 140×50×50×20 | 2.0-3.0 | Adjustable | |
| C160 | 160×60×60×20 | 2.0-3.0 | Adjustable | |
| C180 | 180×60×60×20 | 2.0-3.0 | Adjustable | |
| C200 | 200×60×60×20 | 2.0-3.0 | Adjustable | |
| C220 | 220×70×60×20 | 2.0-3.0 | Adjustable | |
| C250 | 250×70×70×20 | 2.0-3.0 | Adjustable | |
