Polyurethane Foam Insulation SIP PU/PIR Sandwich Panels for building

Wall Cladding Insulation Board SIP Panel Cold Room Rock Wool/ PU /EPS Sandwich Panels Roofing Panel
  • Lead Time:

    about 5-15workdays
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen, China
  • Payment:

    100%TT or LC at sight
  • Color:

    seablue, white or RAL color
  • Product Detail

PU sandwich panel is the top grade new building material with thermal insulation, load-bearing, fireproof, low thermal conductivity, easy installation, rich colors, beautiful appearance and etc.Therefore they are widely used in large industrial plants, large-sized factory buildings, warehouses, cold storage, exhibition halls, kiosks, gymnasiums, etc.

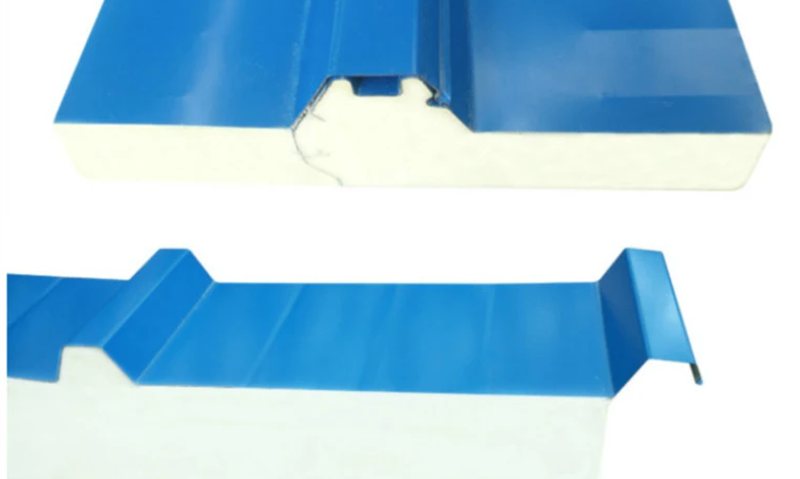

pu sandwich wall panel

PUR/PIR Sandwich Panel Technology Data

Density

40-45kg/m3

Thermal conductivity

0.019-0.023W/M.K

Moisture permeability coefficient

≤3.34Ng/Pa/m.s

Water absorption

≤0.5g/100cm2

Enclosed rate

≥97%

The compression strength

≥220KPa

The bending strength

≥2450KN/m2

Oxygen index

≥28

Fire proof

B1

Dimensional stability

≤1%

Application temperature

-50ºC-150ºC

Exterior Steel thickness

0.4-0.7mm

Interior steel thickness

0.4-0.7mm

Core material thickness

40/50/60/75/100/120/150/200mm

Length

Less than 11.8m

Effective width

Wall panel:400-1120mm;Roof panel:1000mm

Grace finish

Embossment,small wave,big rib,flat finish

USAGE

Roof and Wall

Advantage

Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly

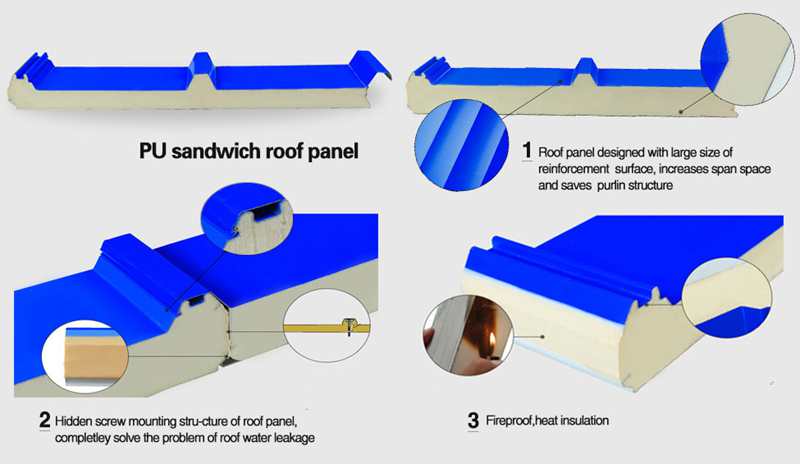

roof sandwich panel

Features

1)Heat insulation

2) Durable-more than 30 years

3) Good quality- ISO 9001:2000

4) Waterproof and fireproof

5) Light weight

6) Cost-saving-the lowest price of sanwich panel

7) Environment protection- highly recommend by the government

8) Large span and most area saving

Service&Support:

We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
