Product Parameters
|
Brand of steel plates: |
Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel. |
|
Painting of steel plates: |
PVDF, SMP, HDP, PE; The top painting should be above 25μm. |
|
Galvanized layer of steel plates: |
Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³. |
|
Thickness of steel plates: |
0.4mm-0.6mm. |
|
Thickness ofcore: |
50/75/100/150mm |
|
Density of core: |
10/12/14/16/18kg/m³ |
|
Effective width: |
950mm/980mm |
|
Panel Length: |
According to customers’ request |

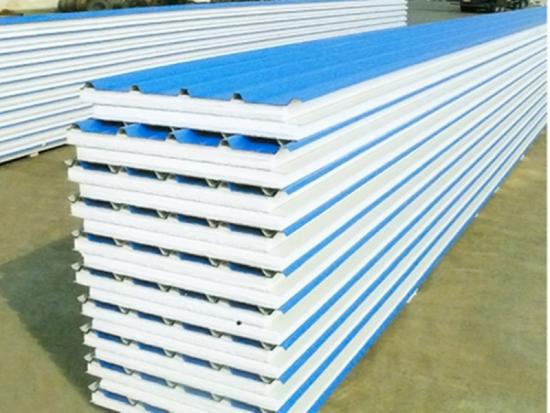

Size Details as below
Cover width : 950mm 1150mm for wall, 950mm for roof
Steel thickness: we can do from 0.3mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 50mm ,75mm, 100mm ,150mm
EPS density: from 8kg/m3 to 20kg/m3
Length: less than 11.8meter
Delivery time:5-10days
Quality:accept your inspection or MIC certificate.
Popular color choices for steel surface
Usually the surface sheet of PUR or PIR sandwich panels is PPGI or PPGL steel color coated sheets.PPGI is prepainted galvanized coated steel and PPGL is prepainted Al-Zn coated steel.For coating type,you could choose PE, PVDF, HDP, SMP,ect.Our strategic cooperation brands are Bluescope, Bao-steel, Shougang steel, Guanzhou steel, Yieh Phui steel,Xinyu steel,etc.
Performance Description
1.Water Prevention:high-quality water-proof EPS.
2.Thermal Insulation:the low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3.Sound insulation:the sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
4.Beautiful Design:bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
5.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
