A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.
Effective width |
wall panel: 950mm 1150mm roof panel: 950mm |
Length |
customized |
Materials |
eps+color steel sheet |
Thickness |
steel sheet: 0.3-0.7mm eps thickness: 50mm 75mm 100mm 150mm 200mm |
EPS density |
8-25kg/m3 |
Character |
light weight, heat insulation, water resistant, easy installation |
Usage |
roof and wall panel for factory buildings, storages, warehouse, exhibition halls, gymnasiums |

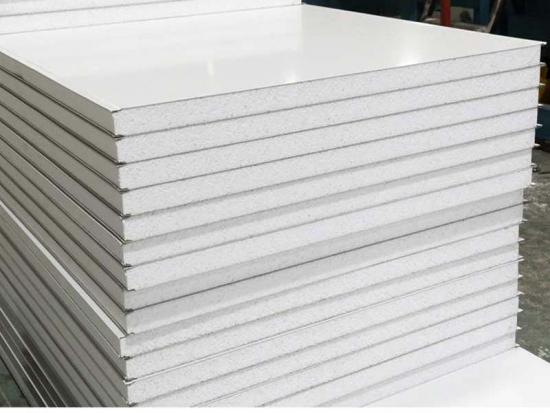

Our company right now have some different kinds of EPS sandwich panels to meet different customers' and markets' requirements.

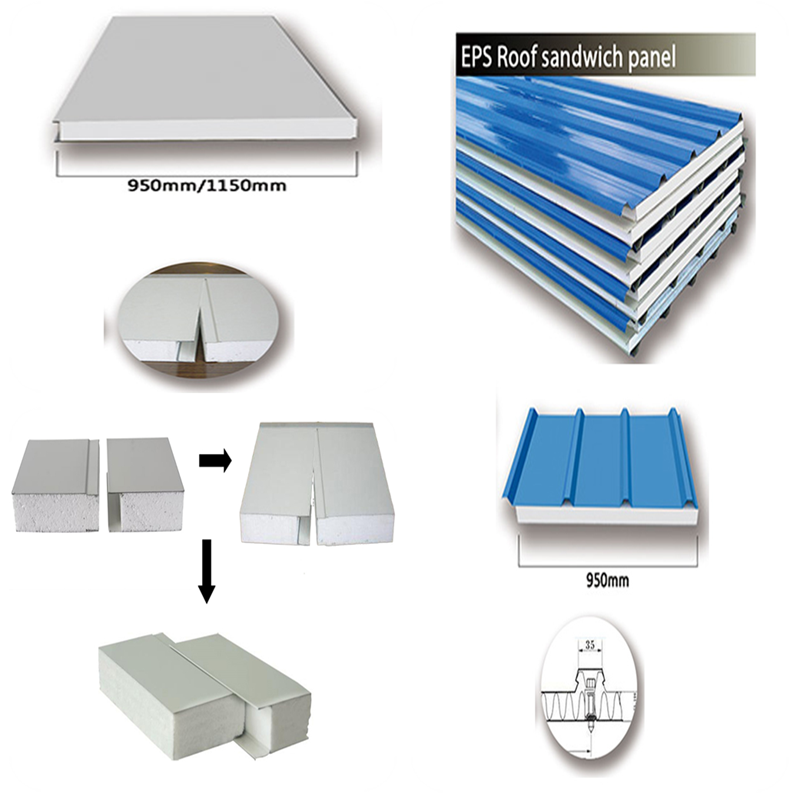

As per different joint ways,we could divide them into the following types:
Size Details as below
Cover width : 950mm 1150mm for wall, 950mm for roof
Steel thickness: we can do from 0.3mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 50mm ,75mm, 100mm ,150mm
EPS density: from 8kg/m3 to 20kg/m3
Length: less than 11.8meter
Delivery time:5-10days
Quality:accept your inspection or MIC certificate.
Applications
1. Good fireproof performance, moisture-proof, corrosion resistance, Environmental protection.
2. Strong and light weight materials suitable for the construction. It's easy of installation and labor cost saving.
3. Thermally efficient rigid foam insulation used as the core material of sandwich panel. Excellent high temperature stability and low temperature application.
4. Widely used as roofing material for steel structure plant, gym, Supermarket, commercial and civilian facilities.
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
