Product Name: |
Rockwool sandwich panels |
|
Steel sheet thickness: |
0.30-0.70mm |
|
Rockwool thickness: |
50mm 75mm 100mm 150mm |
|
Rockwool density: |
80-150KG/M³ |
|
Effective width: |
950/1150mm for wall panel; |
|
Length |
No more than 5.85 meters for 20FT container; |
|
No more than 11.85 meters for 40FT container. |
|
|
Fire resistant level: |
A1 |

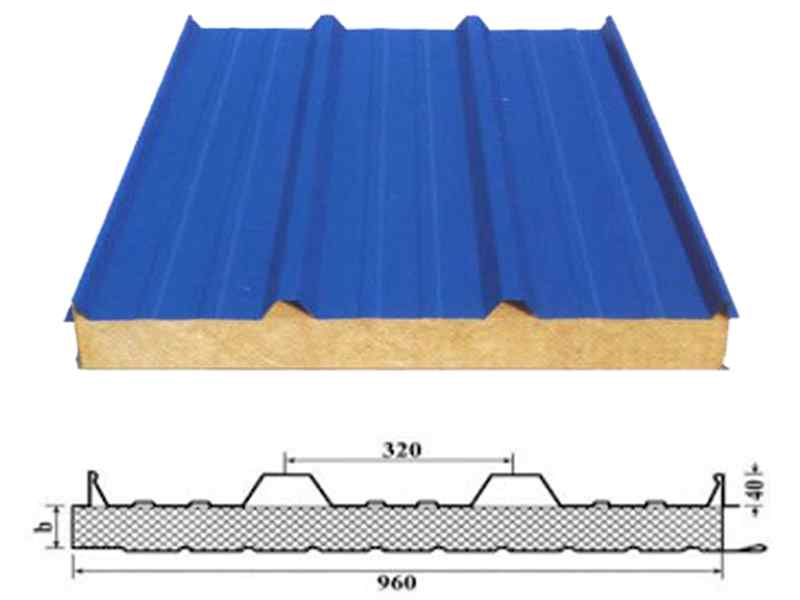

Size Details as below
Cover wide:950mm/1150mm for wall, 950mm for roof
Length: Customized but less than 11.85meter usually.
Max 5.8m for 20GP container; Max 11.8m for 40GP/HQ container
Up color steel board thickness: 0.4mm to 0.7mm
Low color steel board thickness: 0.4mm to 0.7mm
Total thickness: 50mm,75mm,100mm,120mm, 150mm,
Coated materials: Zinc or aluminum alloy, 90-120G/M2
Fillings: rock wool
Steel Grade: Q235
Temperature Endurance: 800ºC
Water Absorption:≤2%
Steel color: white, Blue or RAL color
Our regular color is White grey,sliver grey,white silver grey,iron grey,dark grey,sea blue.
Panel applications:

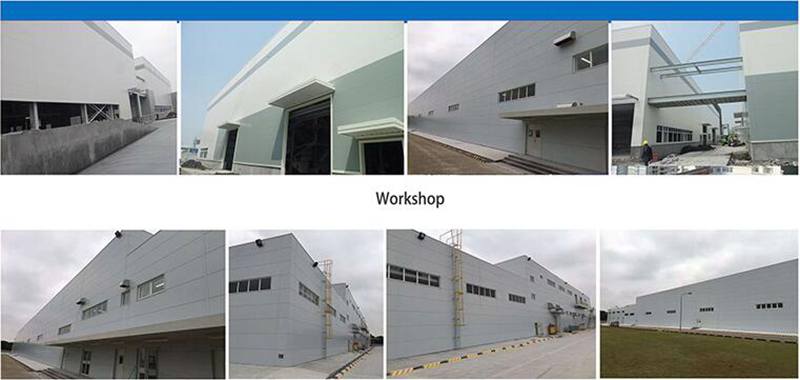

This kind of sandwich panel can be used in steel structure workshops,easy building and air clean room as walls and ceilings.Also it's widely used in Warehouse, gymnasium, exhibition halls, airport,movable dwellings, refrigerator,etc.

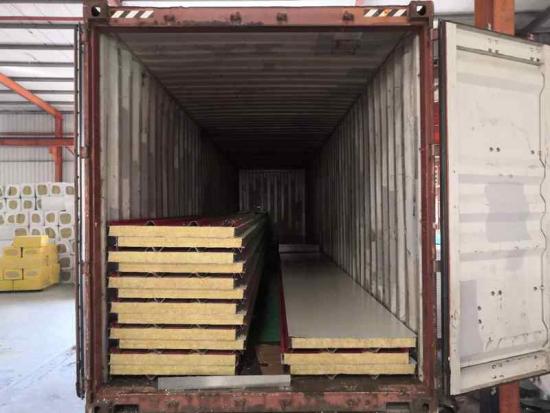

☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
