What's rock wool sandwich panels?
Rock wool sandwich panels is one kind of sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.In order to meet customers' requirements,we have different kinds of joint ways for rock wool sandwich panels.
In order to meet customers' requirements,Australian rock wool sandwich panels is our newly developed sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.

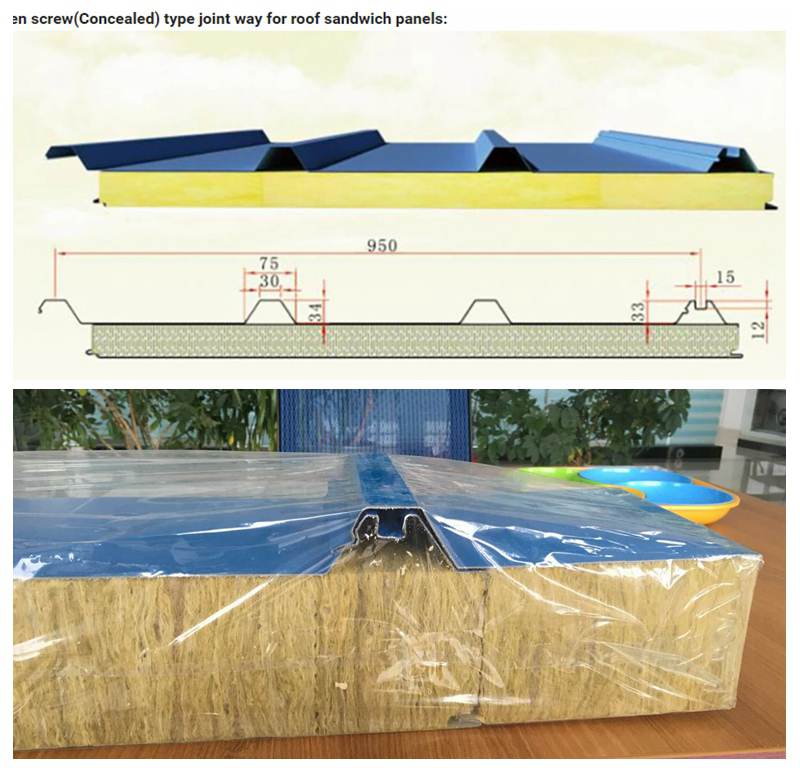

Hiden screw type joint way for roof sandwih panels:

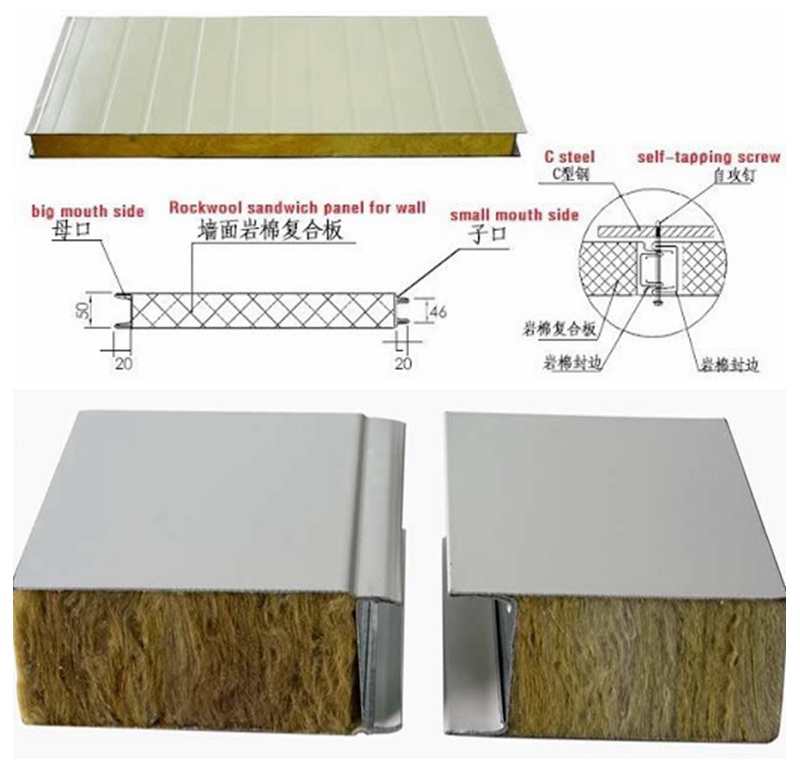

Hiden screw type joint way for wall sandwih panels:
Lip type joint way for wall sandwih panel
Lip type joint way for roof sandwih panel
Size Details as below

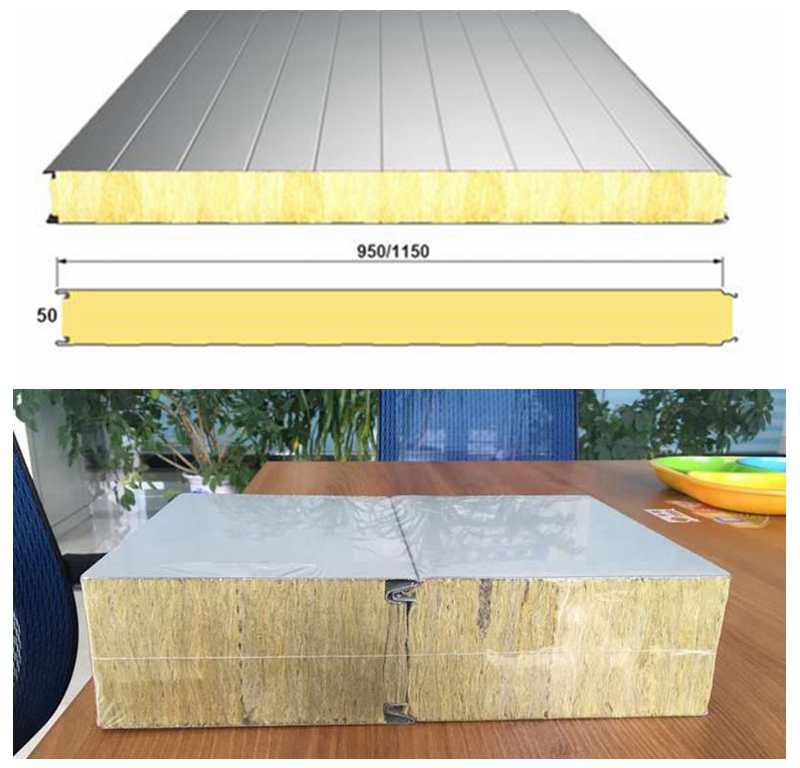

Cover wide:950mm/1150mm for wall, 950mm for roof
Length: Customized but less than 11.85meter usually.
Max 5.8m for 20GP container; Max 11.8m for 40GP/HQ container
Up color steel board thickness: 0.4mm to 0.7mm
Low color steel board thickness: 0.4mm to 0.7mm
Total thickness: 50mm,75mm,100mm,120mm, 150mm,
Coated materials: Zinc or aluminum alloy, 90-120G/M2
Fillings: rock wool
Steel Grade: Q235
Temperature Endurance: 800ºC
Water Absorption:≤2%
Steel color: white, Blue or RAL color
Our regular color is White grey,sliver grey,white silver grey,iron grey,dark grey,sea blue.
Applications
The sandwich panels can be used in large industrial plants,warehouses,supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place. Commercial housings in the cities, such as exhibition halls, shopping centers, offices and other housings for exhibition and sports.The temporary facilities in the construction site, such as office, warehouse.
A. Fire Prevention: High-quality water-proof rock wool and class-A fire-proof performance.
B. Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
C. Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
D. Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
E. Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
F. Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
