A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.
Size Details as below
Cover width : 1000mm/1120mm for wall, 1000mm for roof
Steel thickness: we can do from 0.4mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 35mm, 40mm,50mm ,75mm, 100mm ,120mm,150mm
EPS density: from 40kg/m3 to 45kg/m3
Length: less than 11.8meter
Delivery time:10-20days
Quality:accept your inspection or MIC certificate.
|
Density |
40--45kg/m3 |
|
Thermal conductivity |
0.019--0.023W/M.K |
|
Moisture permeability |
≤3.34Ng/Pa/m.s |
|
Water absorption |
≤0.5g/100cm2 |
|
The compression strength |
≥220KPa |
|
Fire proof rating |
B1,B2,B3 |
|
Application temperature |
-50ºC-150ºC |
|
Steel thickness |
0.4-0.7mm |
|
Core material thickness |
50/60/75/100/120/150/200mm |
|
Length |
Less than 11.8m |
|
The bending strength |
≥2450KN/m2 |
|
Effective width |
1000mm |
|
Usage |

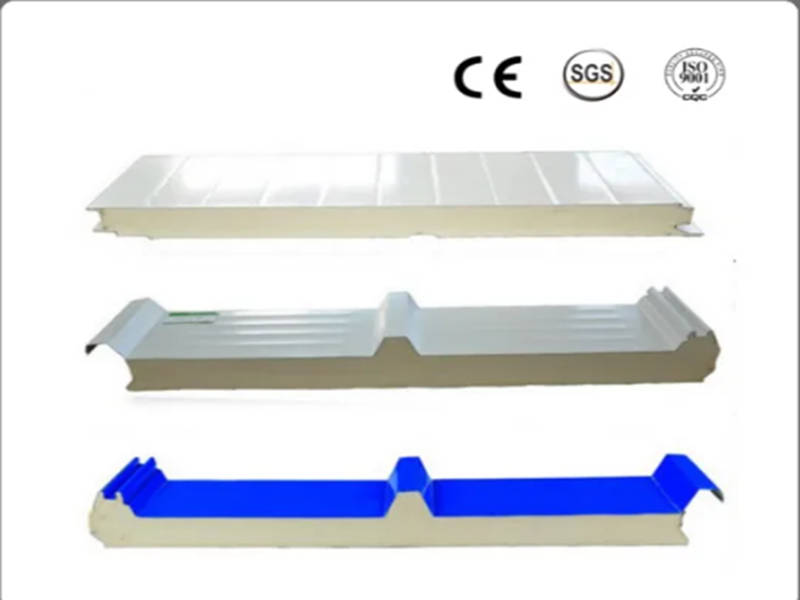

Roof/Wall |
Product advantages:

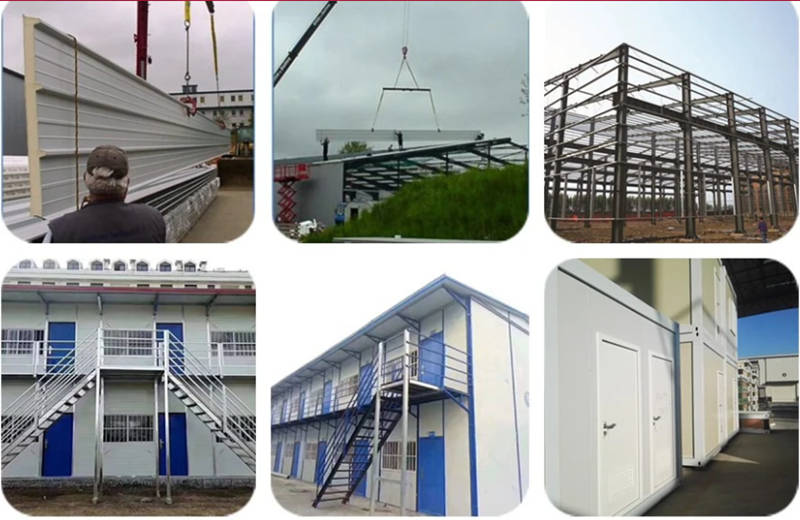

It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
1. Saving-energy
2. Excellent thermal insulation, good sound-proof
3. Good durability

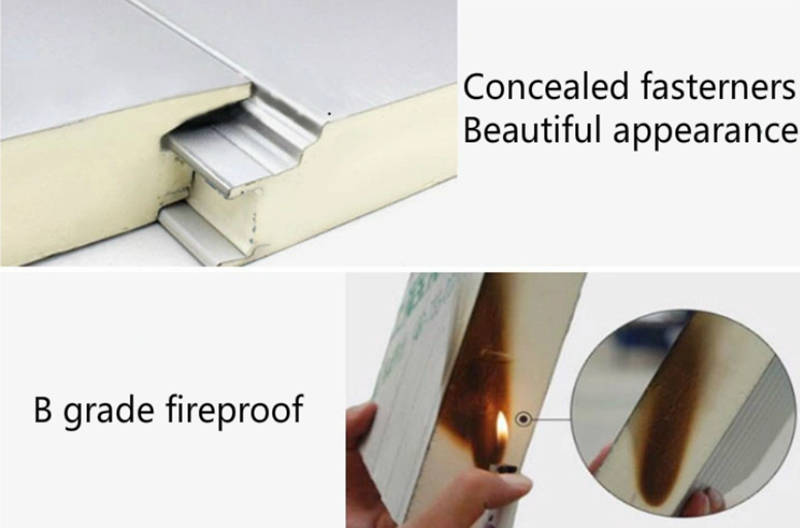

4. High quality in Fireproof
5. Easy installation,Easy assembled and delivery .Second usage.
6. Save construction space
7. Life span: 50 years
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
