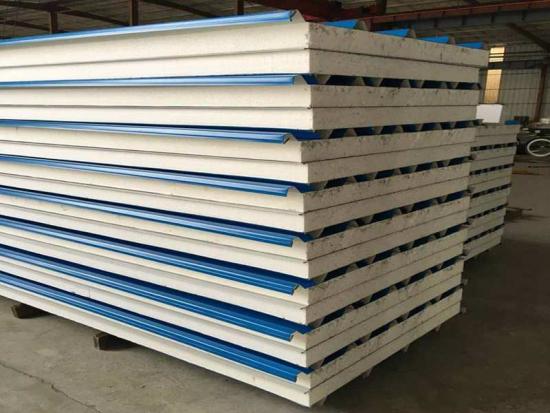

Fireproof structural insulated wall/roof EPS sandwich panel price for prefabricated house
Production introduction:
Eps sandwich panel has excellent sound insulation and heat insulation,the inner and outer sides of steel plate.The surface of the sandwich panel is bright and clean, the dirt can be easily removed, and the whole panel is bright in color, and has good Thermal Insulation.Can be customized according to customer.
Structure three layers:
(1)upper layer is steel sheet,
(2)the inner layer is eps sandwich,
(3)the bottom layer is also steel sheet
EPS sandwich panel performance full as the unique properties of EPS material, with high effect for water-resistance, thermal insulation, acoustic insulation and other aspects.
EPS sandwich panel is a proven construction material well-suited to the extremes. It is a cost-effective, lightweight construction material with excellent insulation properties.
EPS sandwich panel,which is also called foam sandwich panel or EPS insulated panel,and it's one combination of steel sheets and EPS material.Compare to other sandwich panels,the main advantage of EPS sandwich panels is lightweight and competitive price.
EPS (Expanded Polystyrene) is a polymer containing molecules composed of carbon and hydrogen atoms, typically eight of each. The molecular formula of polyurethane, on the other hand, describes a much more complex polymer made from molecules composed of nitrogen and oxygen as well as carbon and hydrogen.

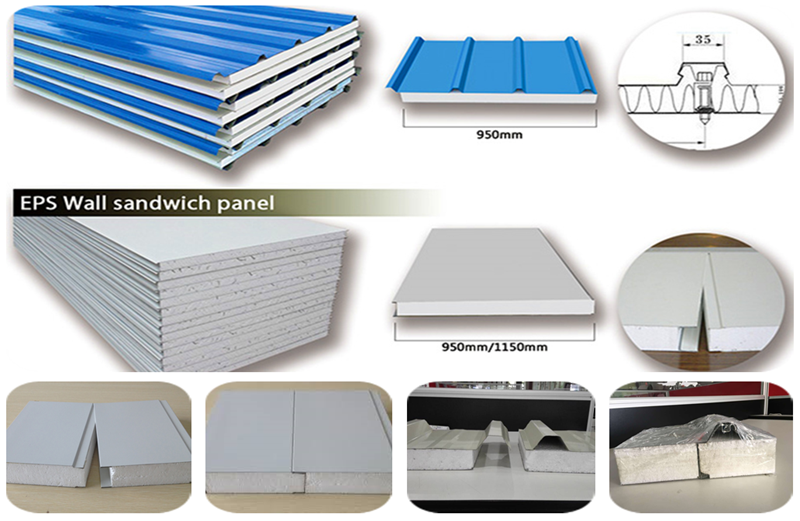

Size Details as below
Cover width : 950mm 1150mm for wall, 950mm for roof
Steel thickness: we can do from 0.3mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 50mm ,75mm, 100mm ,150mm
EPS density: from 8kg/m3 to 20kg/m3
Length: less than 11.8meter
Delivery time:5-10days
Quality:accept your inspection or MIC certificate.
Length 20'GP: no more than 5.85 meter/pcs (19.2ft)
40'GP/40'HQ: no more than 11.85 meters/pcs (38.9ft)
Materials Polystyrene foam board(EPS)
Color steel sheet
Thickness Color steel sheet: 0.3-0.6mm
Polystyrene foam board: 50mm 75mm 100mm 150mm 200mm(1inch=25.4mm)
Insulation Core type EPS foam board(Density 8kg/m3-25 kg/m3)
Color According to the RAL
Package PVC foil
Usage Various roofs and walls referring to the large size industry factory,storages, exhibition halls,outdoor shelter, gymnasiums, etc.
Applications
1. Good fireproof performance, moisture-proof, corrosion resistance, Environmental protection.
2. Strong and light weight materials suitable for the construction. It's easy of installation and labor cost saving.
3. Thermally efficient rigid foam insulation used as the core material of sandwich panel. Excellent high temperature stability and low temperature application.

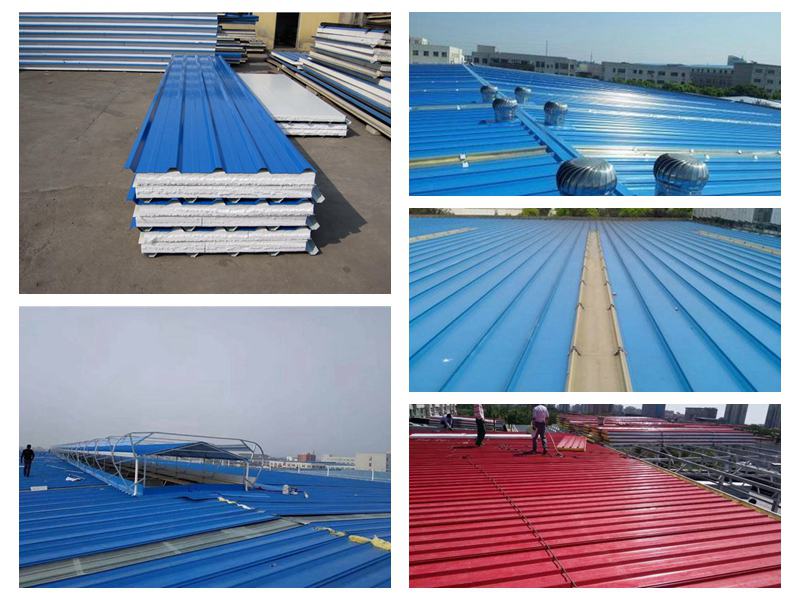

4. Widely used as roofing material for steel structure plant, gym, Supermarket, commercial and civilian facilities.

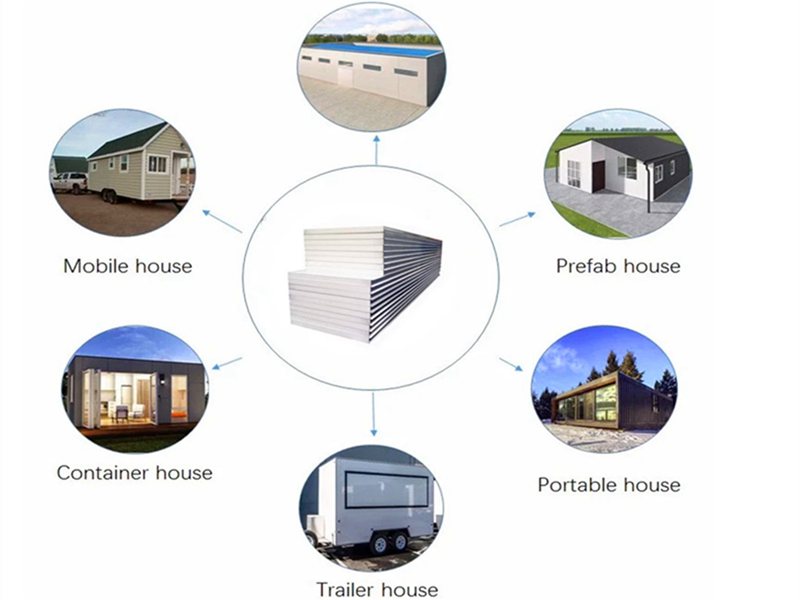

1) sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
2) sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction,
3) in the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials
