Insulated PU sandwich wall panel

PU sandwich panel is the top grade new building material with thermal insulation, load-bearing, fireproof, low thermal conductivity, easy installation, rich colors, beautiful appearance and etc.
  • Lead Time:

    about 5-15workdays
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen, China
  • Payment:

    100%TT or LC at sight
  • Color:

    seablue, white or RAL color
  • Product Detail

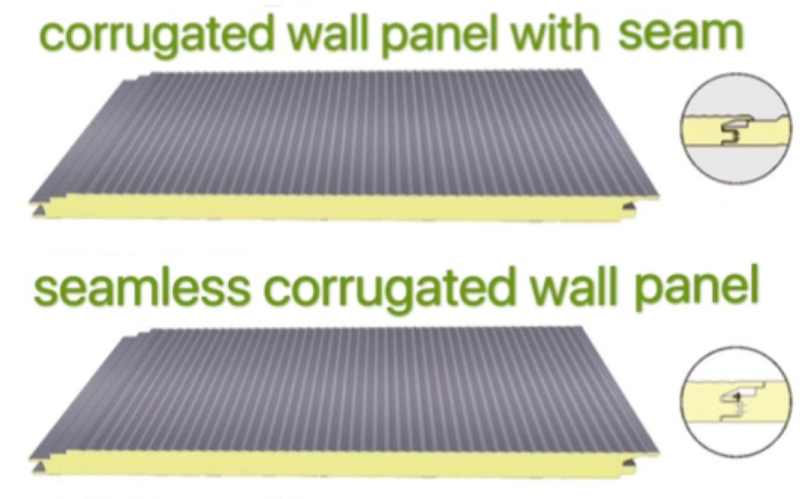

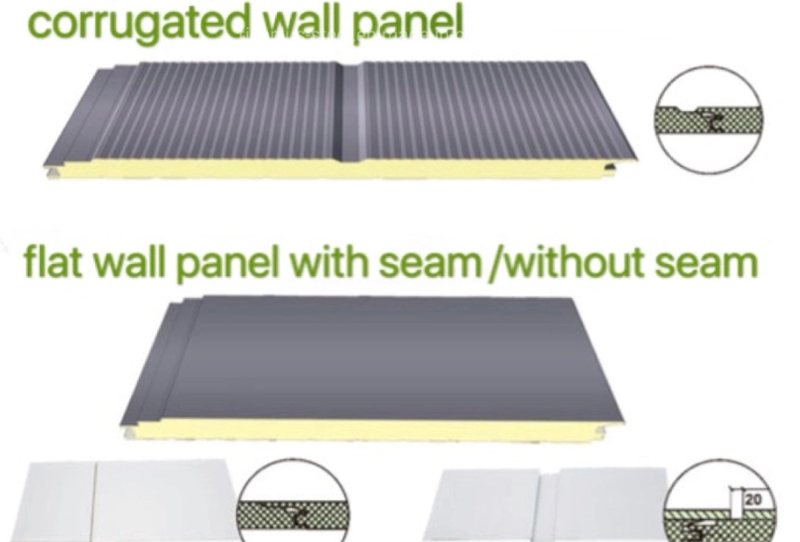

PU sandwich panel is the top grade new building material with thermal insulation, load-bearing, fireproof, low thermal conductivity, easy installation, rich colors, beautiful appearance and etc.Therefore they are widely used in large industrial plants, large-sized factory buildings, warehouses, cold storage, exhibition halls, kiosks, gymnasiums, etc. The Polyurethane wall panel is generally divided into four types: small seamless corrugated wall panels, slotted corrugated wall panels, concave wall panels and mirror panels. There are two ways for wall panel connections: buried connection and pluggable connection. We don't need any nails or other metal tools. These kinds of connections make the product look more nice, make the wall seem much more smooth.

Density 40-45kg/m3
Thermal conductivity 0.019-0.023W/M.K
Moisture permeability coefficient ≤3.34Ng/Pa/m.s
Water absorption ≤0.5g/100cm2
Enclosed rate ≥97%
The compression strength ≥220KPa
The bending strength ≥2450KN/m2
Oxygen index ≥28
Fire proof B1
Dimensional stability ≤1%
Application temperature -50ºC-150ºC
Exterior Steel thickness 0.4-0.7mm
Interior steel thickness 0.4-0.7mm
Core material thickness 40/50/60/75/100/120/150/200mm
Length Less than 11.8m
Effective width Wall panel:400-1120mm;Roof panel:1000mm
Grace finish Embossment,small wave,big rib,flat finish
USAGE Roof and Wall
Advantage

Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly

PU sandwich panelPU Sandwich panel
