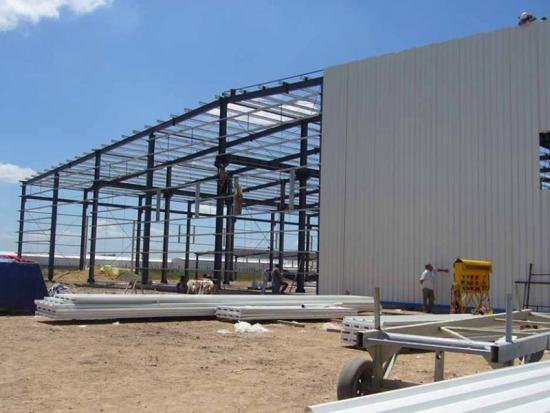

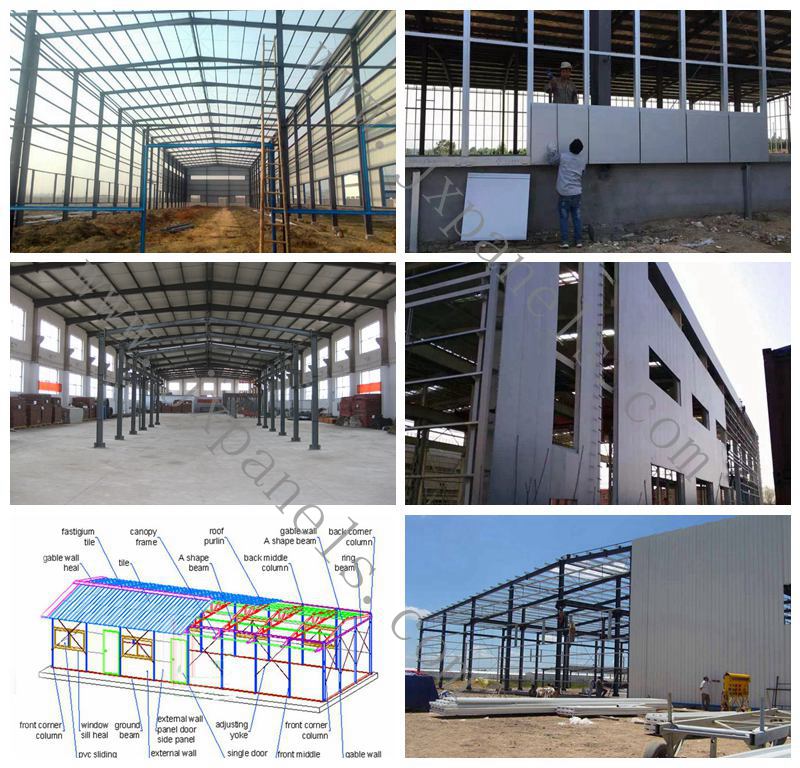

The steel structure warehouse is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure warehouse is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc
Characters:
1,Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2,Low cost: unit price according to customer’s request.
3, Fast construction and easy in installation
4,Long term service life: more than 50 years.
5,Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
Steel structure design common norms are as follows:
"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
Commonly used steel grades and performance of steel
Carbon structural steel: Q195, Q215, Q235, Q255, Q275, Q345,etc.
High-strength low-alloy structural steel
Quality carbon structural steel and alloy structural steel
Special purpose steel
Quotation
Below info needed for the quotation:
Project Name steel structure warehouse
Size total length and width, roof and eave height, roof pitch, etc
Roof and Wall option: EPS, fiber glass, rock wool or PU sandwich panel
Door and Window PVC or Aluminum alloy; sliding door or rolled door
Column and Beam option:hot rooled or welded H section, I section; painting or galvanized
Purlin option:C-Section or Z-section
Local Climate
1.）wind speed
2.）snow load
3.）rain quantity
4.earthquake grade if have
More details is preferred.
Crane Parameter If need crane beam, crane tons parameter and lift height are needed
Drawing 1. according to clients' drawing
2. design as per clients' dimension and requests
Package Naked loaded in shipping container or as per requests.
Loading 20 GP, 40HP, 40 GP, 40 OT
