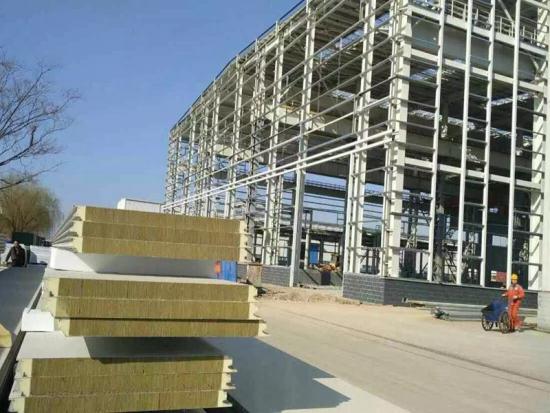

The steel structure warehouse is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure warehouse is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc.
Characters:
1,Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2,Low cost: unit price /square meter FOB according to customer’s request.
3, Fast construction and easy in installation
4,Long term service life: more than 50 years.
5,Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
Steel structure design common norms are as follows:
"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
Commonly used steel grades and performance of steel
Carbon structural steel: Q195, Q215, Q235, Q255, Q275, Q345,etc.
High-strength low-alloy structural steel
Quality carbon structural steel and alloy structural steel
Special purpose steel
One Complete Set of Steel Structure Warehouse
|
Main Frame Structure |
Welded H Section Q235 or Q345 |
|
Wall and Roof Purlin |
C/Z Section Channel, C/Z PURLIN |
|
Roofing Cladding |
Sandwich Panel or Corrugated Steel Sheet |
|
Wall Cladding |
Corrugated Steel Sheet/Sandwich Panel |
|
Tie Rod |
Circular Steel Tube |
|
Brace |
Round Steel Bar |
|
Column & Transverse Brace |
H Section Steel /Angle Steel/Steel Pipe |
|
Knee Brace |
Angle Steel |
|
Roof Gutter |
Color Steel Sheet |
|
Rainspout |
PVC Pipe |
|
Door |
Metal Door Metal Curtain Door/Sliding Door |
|
Windows |
Plastic Steel/PVC/Aluminum Alloy Window |
|
Connecting |
High Strength Bolts |
|
Packing |
Standard Seaworthy Packing |
Quotation
Below info needed for the quotation:
|
Project Name |
steel structure warehouse |
|
Size |
total length and width, roof and eave height, roof pitch, etc |
|
Roof and Wall |
option: EPS, fiber glass, rock wool or PU sandwich panel |
|
Door and Window |
PVC or Aluminum alloy; sliding door or rolled door |
|
Column and Beam |
option:hot rooled or welded H section, I section; painting or galvanized |
|
Purlin |
option:C-Section or Z-section |
|
Local Climate |
1.wind speed |
|
Crane Parameter |
If need crane beam, crane tons parameter and lift height are needed |
|
Drawing |
1. according to clients' drawing |
|
2. design as per clients' dimension and requests |
|
|
Package |
Naked loaded in shipping container or as per requests. |
|
Loading |
20 GP, 40HP, 40 GP, 40 OT |
