Product Parameters:
|
Product Name |

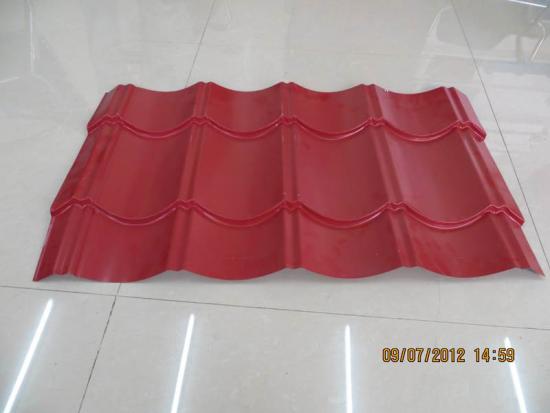

828 Glazed Tile Plate Wall Panel Corrugated Steel Roofing Sheets |
|

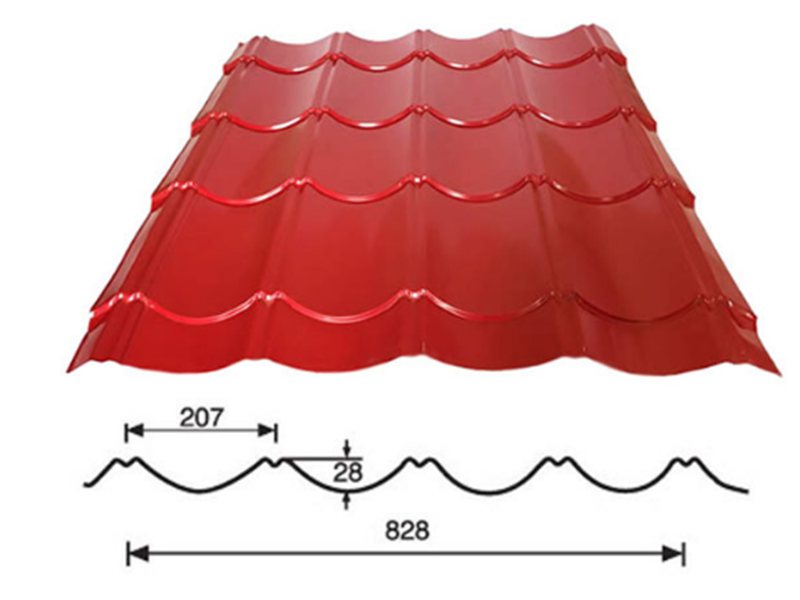

Profiled Steel Sheets Type |
YX28-207-828 |
|
Effective Width |
828mm |
|
Feeding Width |
1000mm |
|
Crest Height |
28mm |
|
Panel Thickness |
0.5-0.6mm |
|
Section Inertia |
5.51-6.18cm⁴/m |
|
Section Resistance |
3.93-4.7cm³/m |
Product Advantages:
1. 828 roofing tile is used for antique building.
2.The pressing speed is very slow, the embossing spacing is generally 25cm -35cm, the margin is 15cm, and the shortest single watt can not be less than 50cm
Color available for roofing steel sheets:
Colors above are regarded as our regular color,welcome you to choose from them,if any color meet your demand.For other color,we have the following requirement:
1)It’s better to send us the color reference in RAL color swatches,then we could have better color reference;
2)For unregular color,we have minimum order quantity,it’s at least 3000 meters per color.

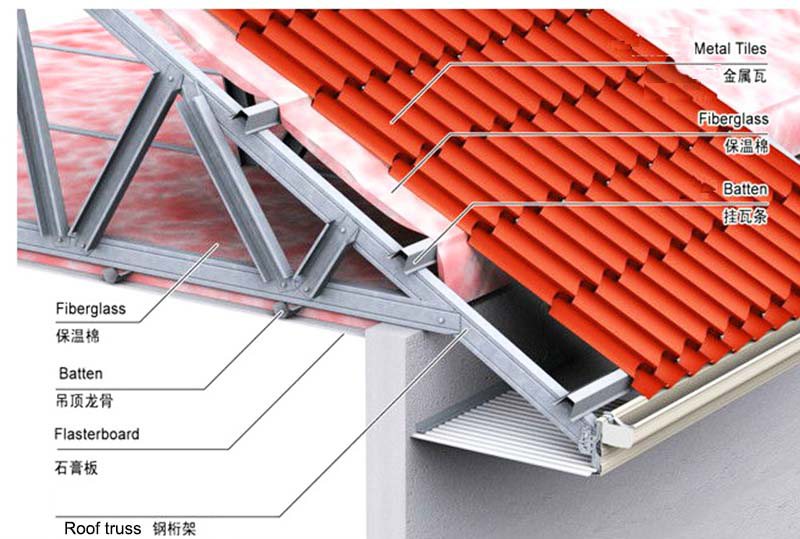

Roofing metal sheets installation way for reference:
That’s one kind of roofing system installation way,which is with YX28-207-828 steel roofing sheets.We could offer full set of installation node drawings for your reference.
