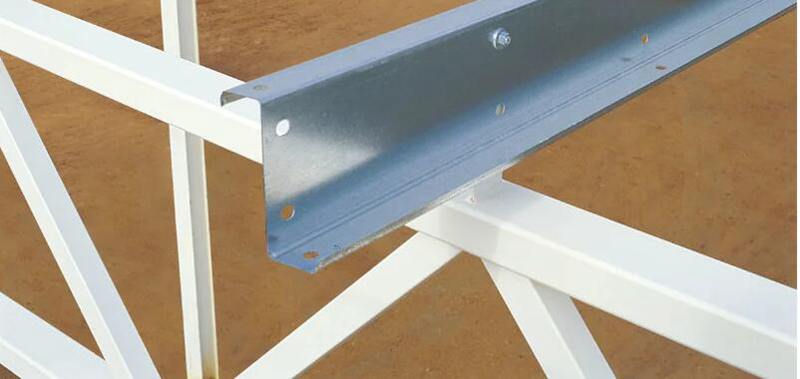

Z100*50 purlin for building materials

Z section steel is roll-formed from galvanized steel, specification to be complete
  • Lead Time:

    about 5-15workdays
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen, China
  • Payment:

    100%TT or LC at sight
  • Color:

    Galvanized
  • Product Detail

Z steel channel is made of galvanized steel strips by the method of cold-bending formed.The surface treatment are galvanized or bare. It has many advantages compared with traditional structural steel, such as light weight, excellent performance cross-section, high-strength and so on

Z steel purlin specification

Height: 100-300mm

Thickness: 1.5-3.0mm

Length: As customers' requirements.

Material: Q195/Q235/Q345/SS400

Surface: Painted or Galvanized.

Punch: Can be punched as customer's drawing

Z purlin

Model NO.

Section size(mm)

Hole distance(mm)

Materials

H

B1

B2

C

Thickness

h

Q235/Q345

Z100

100

55

50

20

1.3~3.0

40

Z120

120

55

50

20

1.3~3.0

Adjusted

Z140

140

55

50

20

1.3~3.0

Adjusted

Z150

150

67

61

20

1.3~3.0

Adjusted

Z160

160

67

61

20

1.3~3.0

Adjusted

Z180

180

67

61

20

1.3~3.0

Adjusted

Z200

200

67

61

20

1.3~3.0

Adjusted

Z250

250

78

72

20

1.3~3.0

Adjusted

Z280

280

78

72

20

1.3~3.0

Adjusted

Z300

300

78

72

20

1.3~3.0

Adjusted


Features:

1) Manufactured from high tensile galvanized steel

2) Z section steel is roll-formed from galvanized steel, specification to be complete

3) Make from quality raw material

4) Pre-punched holes based on detail design

5) Complete accessories package available

6) Z purlin is widely used in factory buildings, large-span bridges, gymnasiums and portable houses

7) Z purlin may be used in single spans and continuous spans in multi-bay buildings

8) We can make adjustment to meet your inquiries as we can do

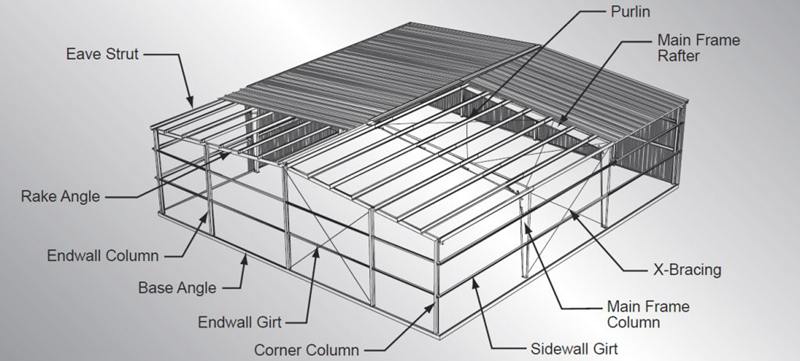

Appliction

Z purlins can be used as the main body of large and medium-sized industrial and civil construction  stress structure, such as factories, warehouses, engine garages, hangar, exhibition halls, theaters, sports venues, the market garden shed roof bearing load and metope.

z purlin
