Z275 Zn coating corrugated steel decking sheet of PPGI/GI Coil

Corrugated and Galvanized Steel Floor Decking Sheet for Reinforced Concrete Truss, Zinc Coated Galvanized Steel Corrugated Decking Floor Plate and Sheets in China ,Color Corrugated Metal Galvanized Steel Floor Decking Sheet
  • Lead Time:

    10`15days after deposit
  • Product Origin:

    China
  • Shipping Port:

    China port
  • Payment:

    100%TT,LC at sight
  • Color:

    as your requirement, Galvanized
  • Product Detail

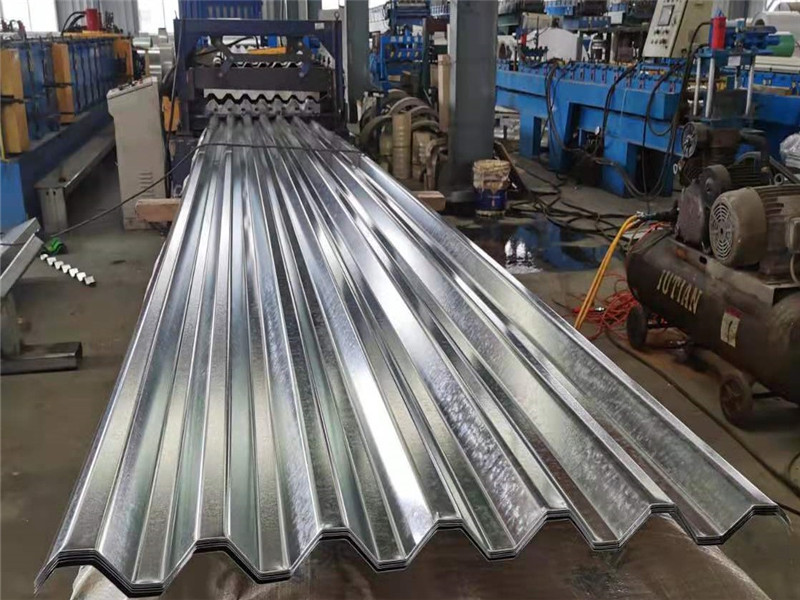

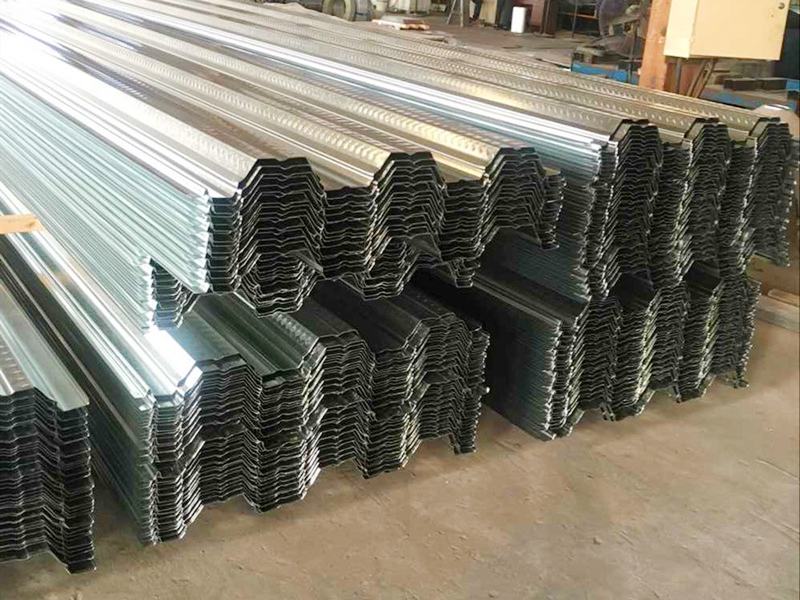

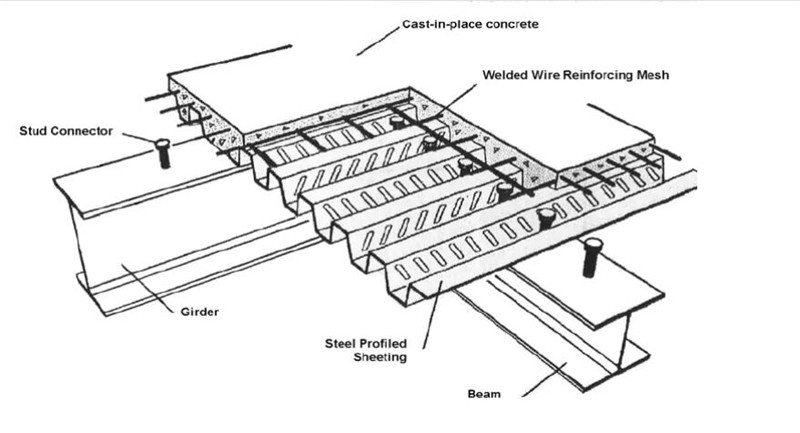

Floor Decking Steel Sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.7 - 1.2 mm. Simple shape with high rib and high strength. Put the panel above the welded wire net, fill cement between them. This panel is usually used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity, use this panel, and save the steel quantity, and thus save cost.

Floor decking steel sheet is mainly using galvanized steel, at thickness 0.7 - 1.2mm; Simple shape with high rib and high strength. Put the panel above the welded wire net, fill cement between them.

This panel is usually used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity, use this panel, and save the steel quantity, and thus save cost.


(1)

light in weight, high intensity, huge lodging capacity as well as good anti-earthquake capability

(2)

simple in construction operation, easy to install

(3)

reducing the cost of raw material

(4)

enable easy operation wiring, and so on

2. Raw materials of composite floor steel decking:

(1)

Hot dipped galvanized steel sheet Q235 Q345

(2)

Galvalume steel sheet(Zinc- aluminum galvanized steel sheet)

(3)

Aluminum sheet

3. specification of composite floor steel decking:

Thickness

0.7-1.2mm; max 1.5mm

Width

600mm-1025mm (depend on the model you chose)

Length

0mm-11800mm

Model

YX76-305-915/  YX51-250-750/YX35-125-750/YX130-280-600

Certification

JIS/ASTM/GB/T12755-2000

Thickness Tolerance:

+/-0.04mm

Width Tolerance:

+/-5mm

Zinc Coating:

60-275g/m2; max 350g/sqm

☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support:

We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;
