50mm 75mm 100mm fireproof insulated rockwool sandwich panels

50mm 75mm 100mm China Factory Price Composite Metal Wall Insulation Sandwich Panel Rockwool for Prefab House
  • Lead Time:

    about 5-15workdays
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen, China
  • Payment:

    100%TT or LC at sight
  • Color:

    seablue, white or RAL color
  • Product Detail


Rockwool sandwich panel and its manufacturing process is one the most advanced inventions, which in the factory automation equipment, rock wool and steel into a whole, thus changing the way of the rock wool plate before the compound required site , under the premise that meet the requirements of the building thermal insulation, sound insulation, fire protection, to achieve a high quality, efficient, reliable, safe target.



In order to meet customers' requirements,Australian rock wool sandwich panels is our newly developed sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.

wall panel for building rockwool sandwich panels for building

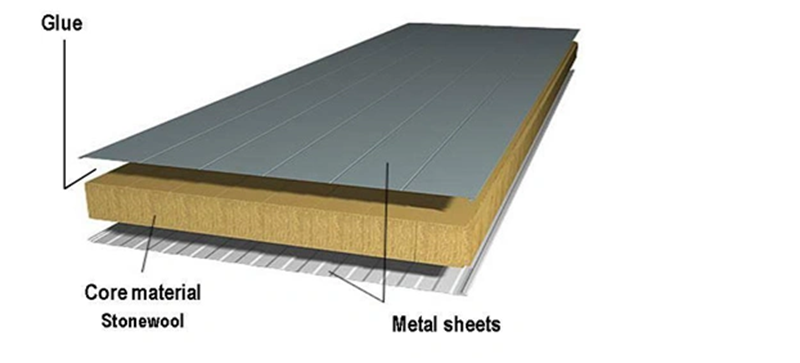

What's rock wool sandwich panels?

Rock wool sandwich panels is one kind of sandwich panels,which is combined by rock wool as core material and two steel sheets on up and down side.Compare to other kind of sandwich panels,the most outstanding features of rock wool insulated panels is fireproof level,which is A1 level.In order to meet customers' requirements,we have different kinds of joint ways for rock wool sandwich panels.

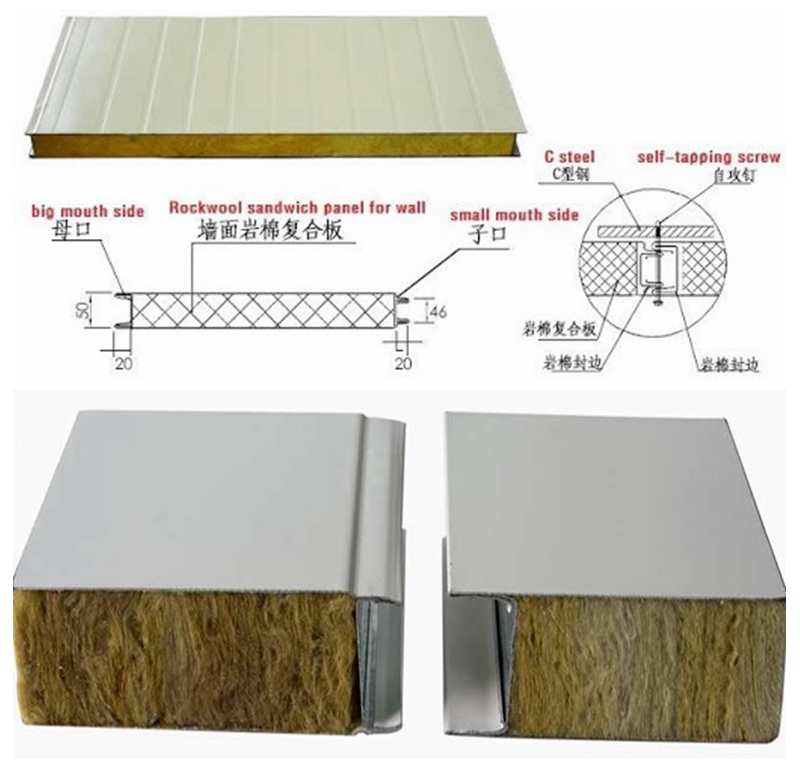

wall sandwich panels introduce


Brand of steel plates:

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates:

PVDF, SMP, HDP, PE;

The painting should be above 25μm.

Galvanized layer of steel plates:

Exterior plate:55% Aluzinc above 100g/m³ or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³ or Zinc coating above 100g/m³.

Thickness of steel plates:

0.4mm-0.6mm.

Thickness of core:

50mm/75mm/100mm/120mm/150mm.

Density of core:

90/100/120kg/m³

Effective width:

950mm/1150mm

Panel Length:

According to customers' request

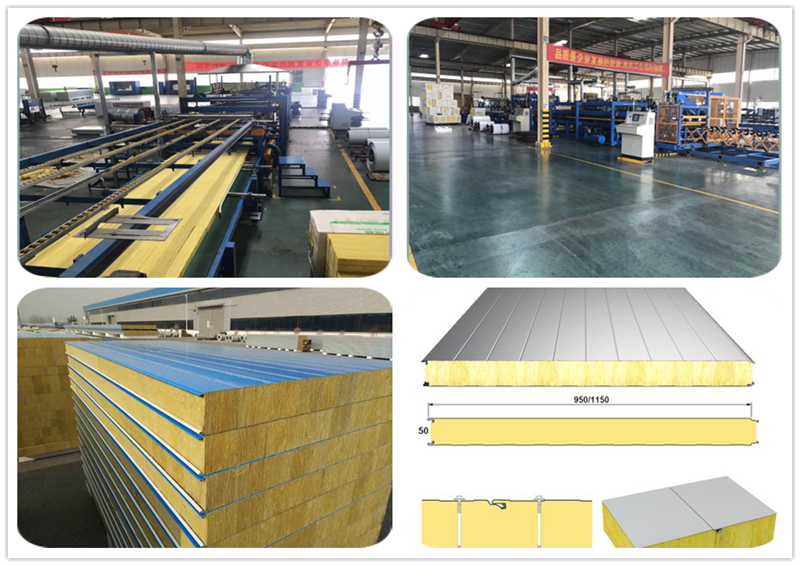

production line

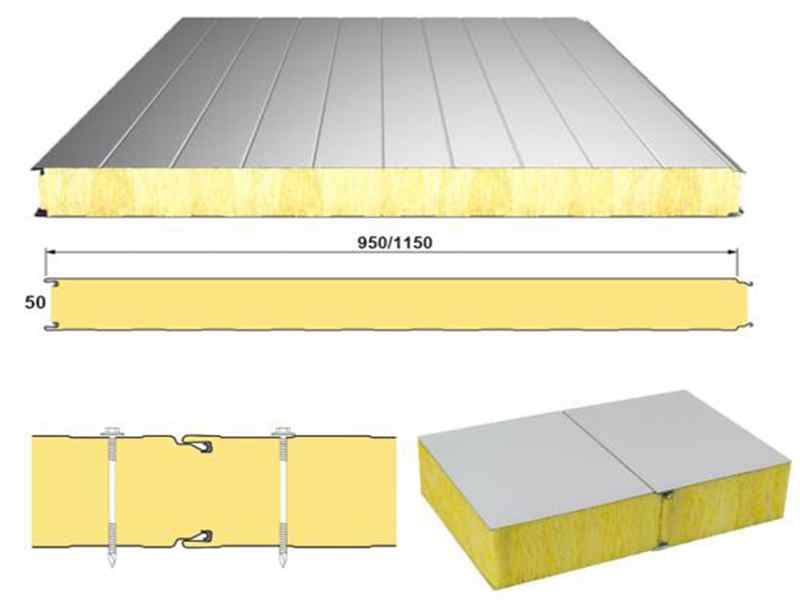

Size Details as below

Cover wide:950mm/1150mm for wall, 950mm for roof

Length: Customized but less than 11.85meter usually.

Max 5.8m for 20GP container;  Max 11.8m for 40GP/HQ container

Up color steel board thickness: 0.4mm to 0.7mm

Low color steel board thickness: 0.4mm to 0.7mm

Total thickness: 50mm,75mm,100mm,120mm, 150mm,

Coated materials: Zinc or aluminum alloy, 90-120G/M2

Fillings: rock wool

Steel Grade: Q235

Temperature Endurance: 800ºC

Water Absorption:≤2%

Steel color: white, Blue or RAL color

Our regular color is White grey,sliver grey,white silver grey,iron grey,dark grey,sea blue.

production process control

Service&Support:

We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.

product certificate
