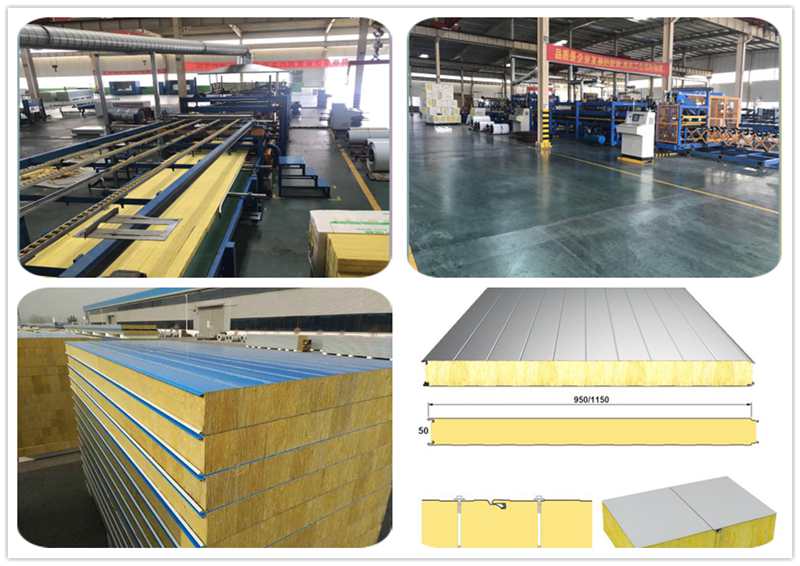

Rockwool sandwich panel and its manufacturing process is one the most advanced inventions, which in the factory automation equipment, rock wool and steel into a whole, thus changing the way of the rock wool plate before the compound required site , under the premise that meet the requirements of the building thermal insulation, sound insulation, fire protection, to achieve a high quality, efficient, reliable, safe target.

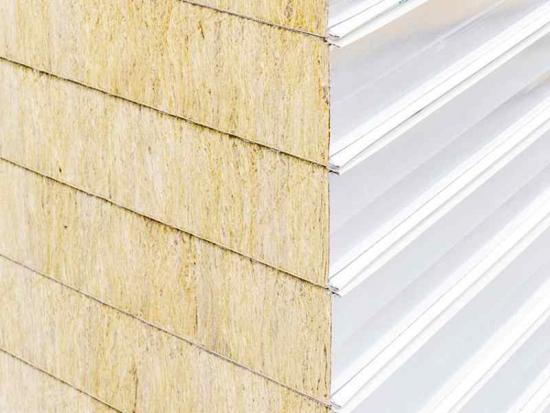

The up & down surface of this rockwool panel is Galvanized & Pre-painted steel sheets, core material is 5 components rockwool glue, it is formed by heating, foaming & laminating. Rockwool is the best material for temperature keeping and sound insulation. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.

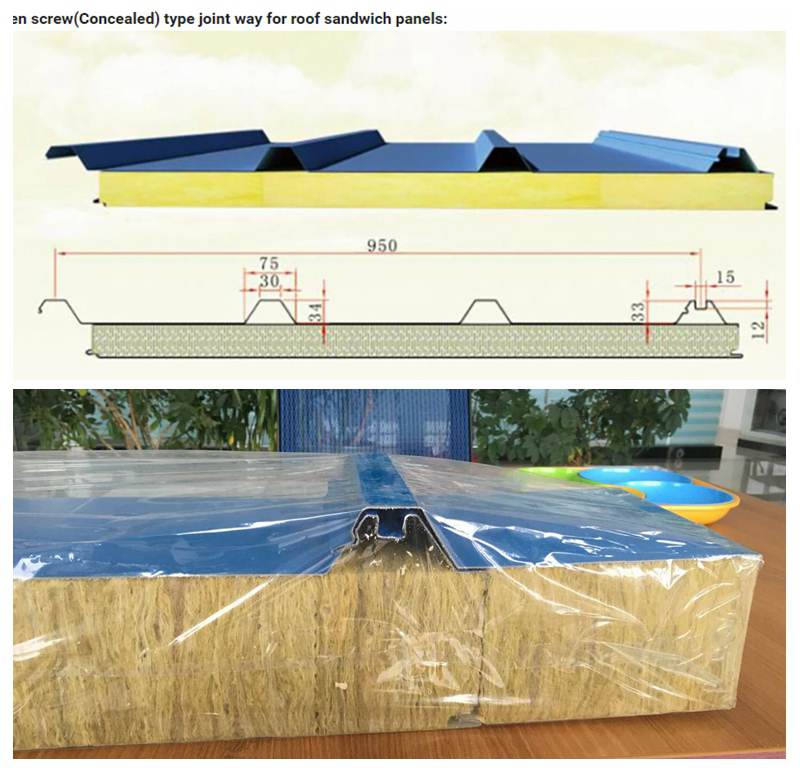

Hiden screw type joint way for roof sandwih panels
Hiden screw type joint way for roof sandwih panels
|
Product Name: |
Rockwool sandwich panels |
|
Steel sheet thickness: |
0.30-0.70mm |
|
Rockwool thickness: |
50mm 75mm 100mm 150mm |
|
Rockwool density: |
80-150KG/M³ |
|
Effective width: |
950/1150mm for wall panel; |
|
Length |
No more than 5.85 meters for 20FT container; |
|
No more than 11.85 meters for 40FT container. |
|
|
Fire resistant level: |
A1 |
Panel applications:
This kind of sandwich panel can be used in steel structure workshops,easy building and air clean room as walls and ceilings.Also it's widely used in Warehouse, gymnasium, exhibition halls, airport,movable dwellings, refrigerator,etc.
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
