600 mm Metal Sheet Corrugated PPGI Prepainted Galvanized Corrugated Steel Sheet

Roofing Materials G60 G90 Zinc Coated Gi Metal Roof Sheet Galvanized Steel Corrugated Roofing Sheet in Ghana Gi Galvanized Color Corrugated Sheet Hot Rolled Carbon Steel Plate Panel Factory Price Corrugated Steel Roofing Sheet Zinc Coating 40-180g/Galvanized Corrugated Steel Sheet for Roofing Sheet
  • Product Detail

Steel roofing sheet is made from galvanized or pre-painted corrugated steel sheet.

It is a component of the building envelope. Steel roofing can be used for residential and commercial buildings.

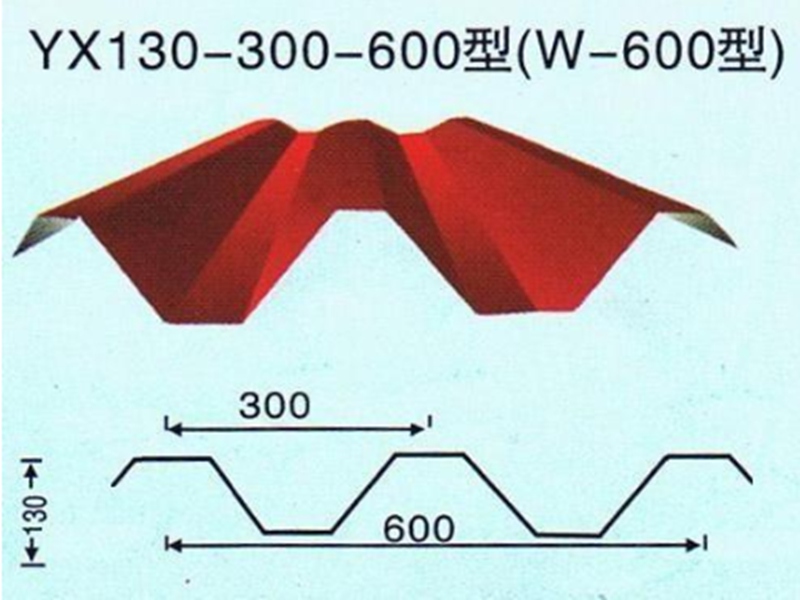

600 mm roofing sheet
Material CGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D
Thickness 0.3-0.8mm
Width 750-1250mm(before corrugation)
600-1100mm(after corrugation)
Length 1000-3500mm or as require
Coating type Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF)
Painting Thickness Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12- 20 um) back: 7 +/- 2 um
Pallte Weight 3-5 Tons
Annual Output Quantity 350,000MT
MOQ 25 tons or one container
Payment T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Hardness Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95)


Color chart RAL color number
Application exterior and interior wall,roofs,and soffits

roofing sheet

Characteristic:

(1) Attractive and beautiful appearance, rich colors be chosen, combination flexible, can be expressed in different architectural styles.

(2) Lightweight(6~10kg/m2) and high strength(yield strength250~550MPa), with excellent features of waterproof, shockproof.

(3)Convenient construction and installation, reduce installation, transportation workload, shorten the construction period.

(4)Raw material steel sheet is part of green building material, recyclable.

Application:

Widely used in power plants, factories, warehouse, office, airport terminals, railway stations, stadiums, supermarkets, logistic centers and other steel structure constructions.

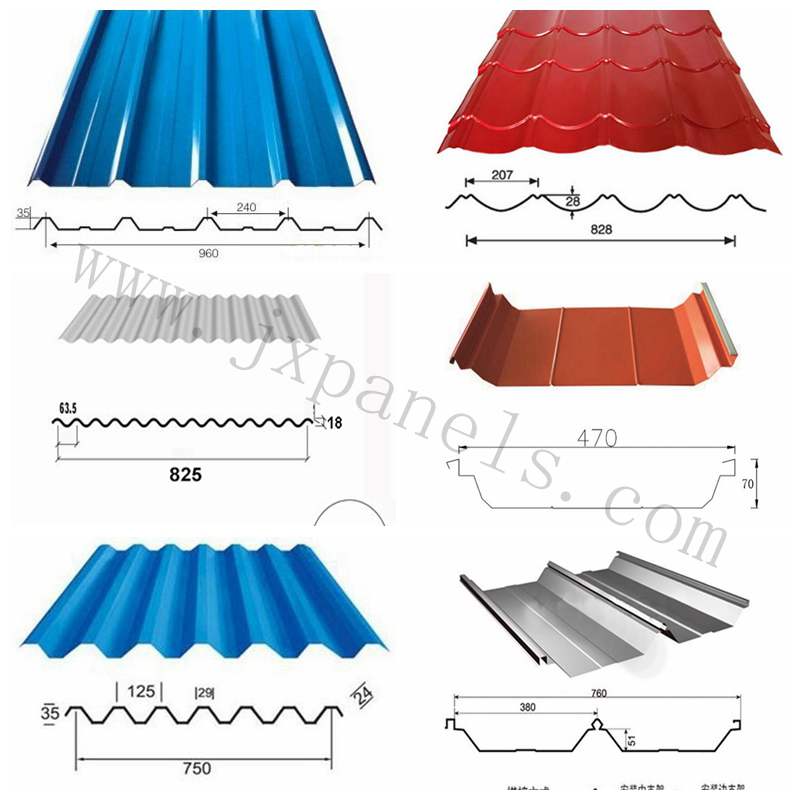

More other type of roofing sheet
