A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.

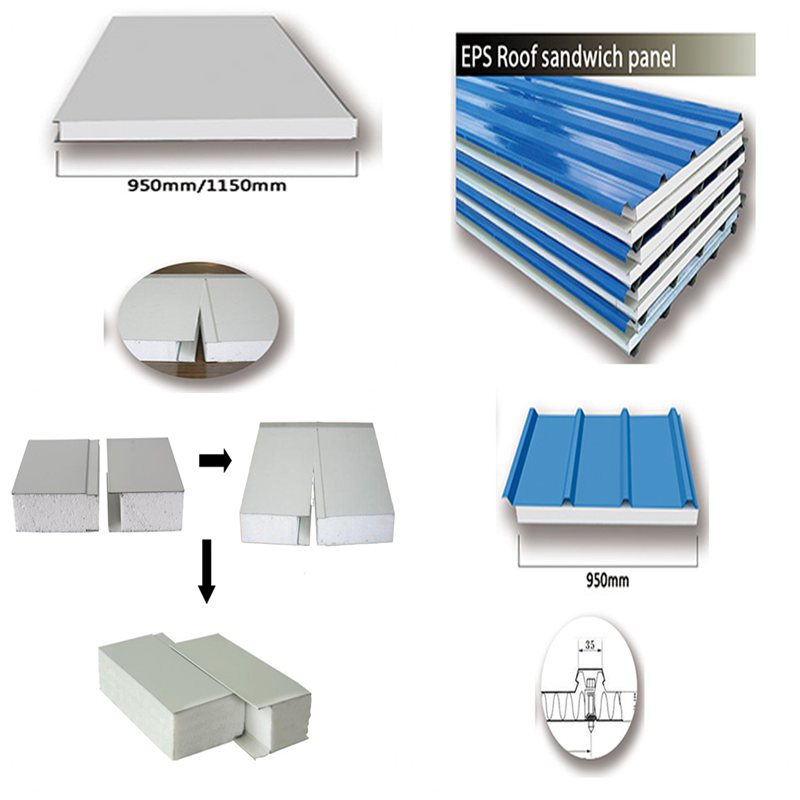

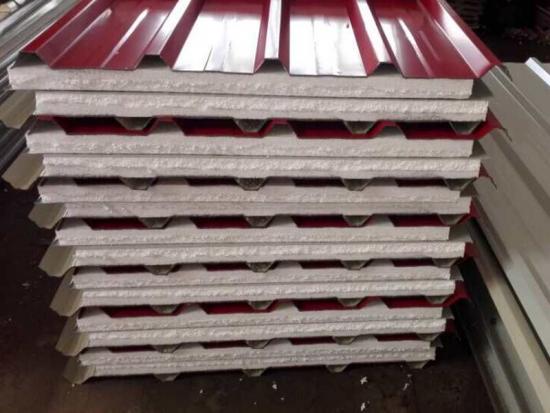

EPS Sandwich Panel Common Size Details as below
Cover width : 950mm 1150mm for wall, 950mm for roof
Steel thickness: we can do from 0.3mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 50mm ,75mm, 100mm ,150mm
EPS density: from 8kg/m3 to 20kg/m3
Length: less than 11.8meter
Delivery time:5-10days

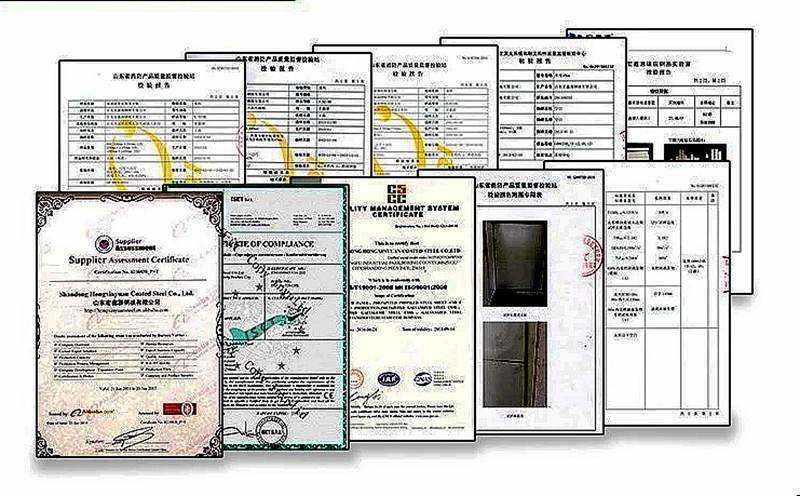

Quality:accept your inspection or MIC certificate.
Effective width |
Wall panel: 950mm / 1150mm, Roof tile: 950mm |
Length |
According to customer's request panel |
Materials |
Polystyrene foam board(EPS/Glass wool/Phenolic Foam), Color steel sheet |
Structure |
Upper and lower layer: Color steel sheet |
Middle: EPS/Glass wool/PU panel |
|
Thickness |
Color steel sheet: 0.2-0.5mm panel |
Polystyrene foam board: 50mm 75mm 100mm 125mm 150mm 175mm 200mm |
|
Middle Material density |
EPS:6-16kg/m3,Glass wool:35kg-60kg panel |

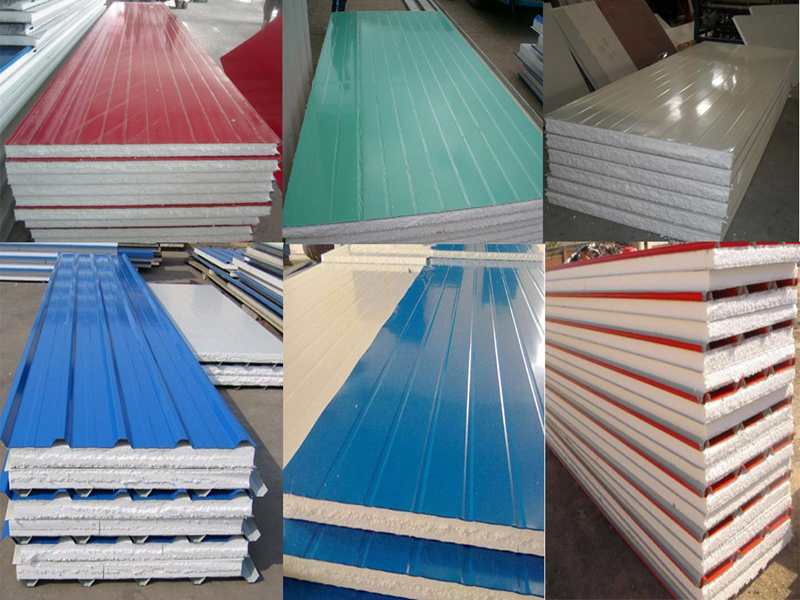

Conventional color |
White,green,blue,Grey,red,etc panel |
Character |
Light in weight, heat insulation, water resistant, green and environmental panel |
Use |
Various roofs and walls referring to the large size factory buildings, storages, exh |
Applications
1. Good fireproof performance, moisture-proof, corrosion resistance, Environmental protection.
2. Strong and light weight materials suitable for the construction. It's easy of installation and labor cost saving.
3. Thermally efficient rigid foam insulation used as the core material of sandwich panel. Excellent high temperature stability and low temperature application.

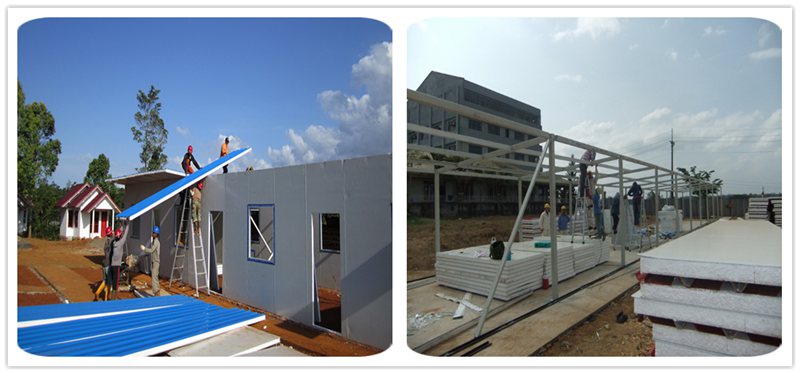

4. Widely used as roofing material for steel structure plant, gym, Supermarket, commercial and civilian facilities.
1.Q:Who are we? And what is our main products?
A:We are a local supplier in Xiamen China with our factory and production line.Our main products are all kinds of sandwich panels ,C/Z Purlin ,steel decking sheet,roof or wall panels,and truss steel decking for light steel buildings.
2.Q:what should I do if I want to buy your products?
A:Please send us inquiry by mail if you are interest in our products.We would get back to you as soon as possible according to your needs.
3.Q:What kind of payment ways do you accept?
A:Western Union, T/T and LC at sight is Available.
4.A:Could you provide samples for quality confirmation?
Q:Yes, we could provide samples for free.

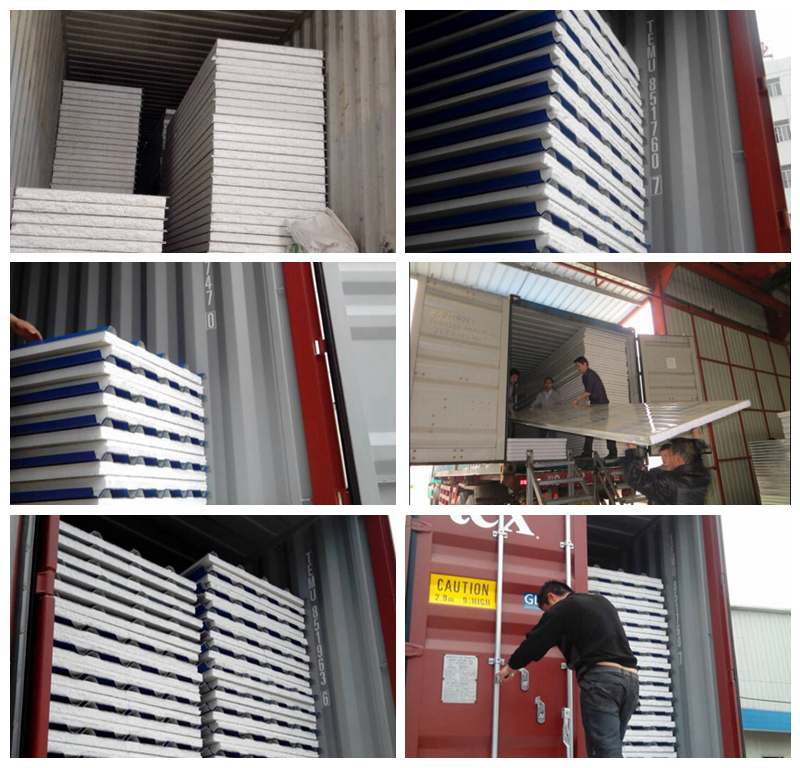

Payment&shipment
1.Packaging Details: According to international export standard for Fireproof Australian standard rockwool / mineral wool sandwich panel 50mm 75mm 100mm wall panel and roof panel
2.Delivery time:20days after deposit
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
