Light Weight Fireproof Structural Insulated Wall/Roof EPS Sandwich Panel for Prefab House/Factory/Warehouse
Eps sandwich panel has excellent sound insulation and heat insulation,the inner and outer sides of steel plate.The surface of the sandwich panel is bright and clean, the dirt can be easily removed, and the whole panel is bright in color, and has good Thermal Insulation.Can be customized according to customer.
Structure three layers:
(1)upper layer is steel sheet,
(2)the inner layer is eps sandwich,
(3)the bottom layer is also steel sheet
Size Details as below
Cover width : 950mm 1150mm for wall, 950mm for roof
Steel thickness: we can do from 0.3mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 50mm ,75mm, 100mm ,150mm
EPS density: from 8kg/m3 to 20kg/m3
Length: less than 11.8meter
Delivery time:5-10days
Quality:accept your inspection or MIC certificate.

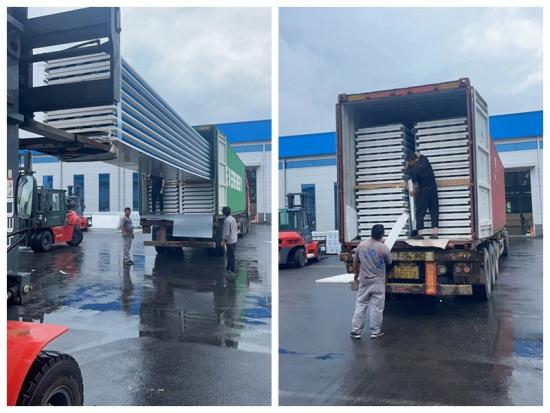

Loading photos
Features
1. Heat and sound insulation. Temperature suitable for eps sandwich panel ranges from -200 centigrade to 150 centigrade.
2. Waterproof, anti-corrosion, good chemical resistance, insect-free etc.
3.Advanced Tech: Automatic Italian rolling machines make the whole process of manufacture effective.
4.Energy conservation, environmental protection, economical, heat insulating, good structure, easy construction.
5. Light weight enough to reduce building expense.
6.Time can be saved on a building project due to the simple installation.
