Polyurethane Sandwich Panel also called PU Sandwich Panel,the top & bottom sheet of this panel is Galvanized & Pre-painted steel sheets,and core material is 5 components Polyurethane glue, it is formed by heating, foaming & laminating. Polyurethane is the best material for heat and sound insulation. It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. It is a new type of heat insulation material for lower construction cost.Panels are in multiple varieties and specifications to meet the need of various sites and projects.
Material instruction:
1)Suface sheet:
Usually the surface sheet of PUR or PIR sandwich panels is PPGI or PPGL steel color coated sheets.PPGI is prepainted galvanized coated steel and PPGL is prepainted Al-Zn coated steel.For coating type,you could choose PE, PVDF, HDP, SMP,ect.Our strategic cooperation brands are Bluescope, Bao-steel, Shougang steel, Guanzhou steel, Yieh Phui steel,Xinyu steel,etc.
2)Polyurethane core material:Our polyurethane core material strategic cooperation brands are D·BASF, Huntsman, WANHUA, etc.

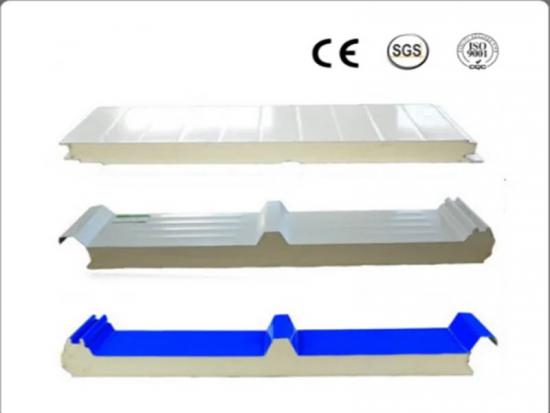

PU sandwich panels model type introduction:

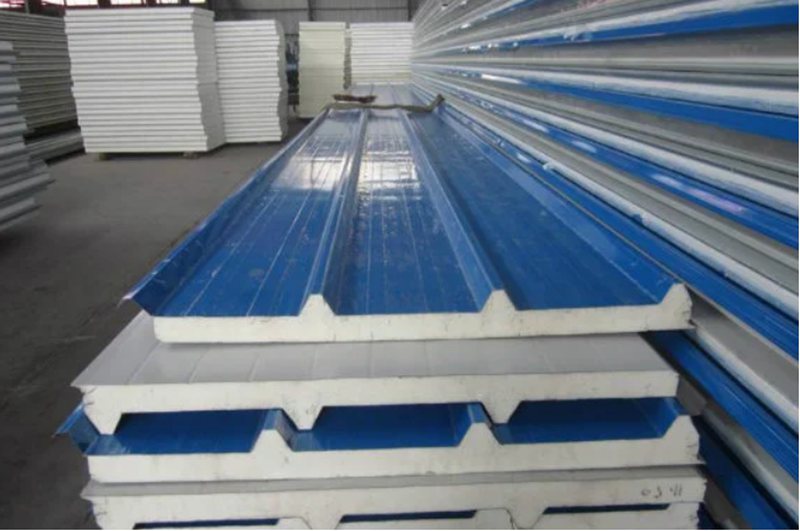

1) Roof panels:

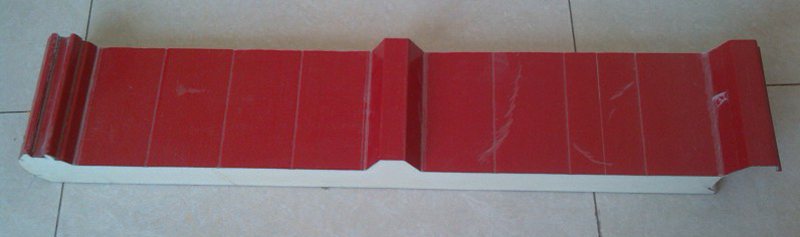

3 ribs concealed joint roof panels:
4 ribs overlapping joint roof panels:
Size Details as below
Cover width : 1000mm/1120mm for wall, 1000mm for roof
Steel thickness: we can do from 0.4mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 35mm, 40mm,50mm ,75mm, 100mm ,120mm,150mm
EPS density: from 40kg/m3 to 45kg/m3
Length: less than 11.8meter
Delivery time:10-20days
Quality:accept your inspection or MIC certificate.
Steel Sheet Thickness |
0.4-0.7mm |
Core Material Thickness |
40mm 50mm 60mm 75mm 100mm 120mm 150mm 200mm |
Density |
40kg/m3 |
Effective Width |
Wall:400-1120mm Roof panel: 1000mm |
Length |
Less than 11.8m (container inner length) |
Thermal Conductivity |
0.019-0.023w/m.k |
Moisture Permeability Coefficient |
≤3.34Ng/Pa/m.s |
Water Absorption |
≤0.5g/100cm2 |
The Compression Strength |
≥220KPa |
The Bending Strength |
≥2450KN/m2 |
Fireproof Grade |
B1 B2 |
Advantage |
Heat insulation, light weight, quick installation, waterproof, fireproof, environmental friendly. |
Usage |
Wall and roof panel for workshops, warehouse, cold room, villas, etc |
Product advantages:
It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
Service&Support:
We are one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
