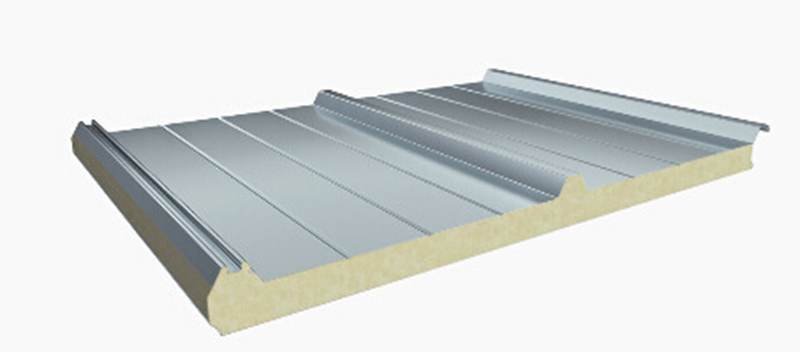

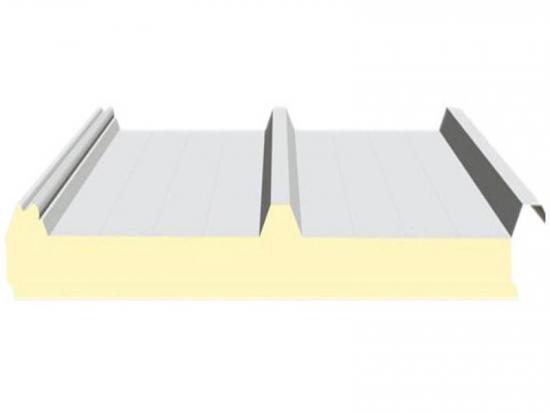

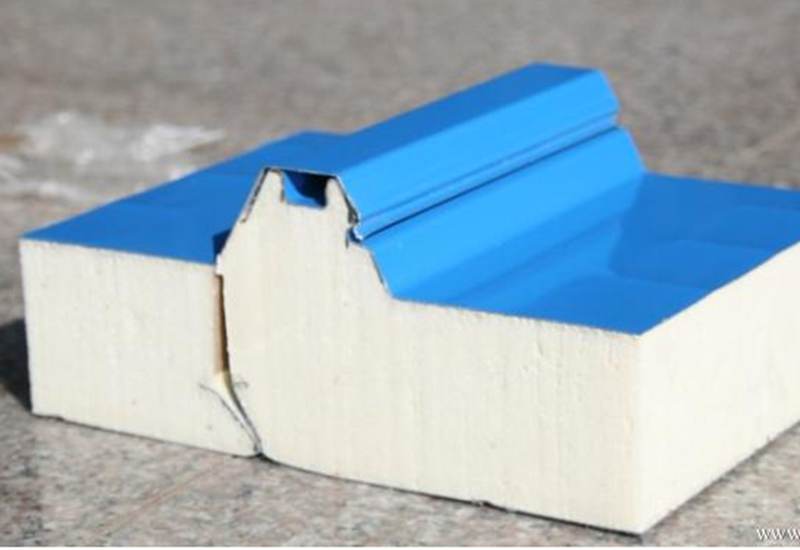

Polyurethane(PU)sandwiched panel is composed of 2 layers of colored steel sheets and injected hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, cold room ,exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearin
Size Details as below
Cover width : 1000mm/1120mm for wall, 1000mm for roof
Steel thickness: we can do from 0.4mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 35mm, 40mm,50mm ,75mm, 100mm ,120mm,150mm
EPS density: from 40kg/m3 to 45kg/m3
Length: less than 11.8meter
Delivery time:10-20days
Quality:accept your inspection or MIC certificate.
1)Suface sheet:
Usually the surface sheet of PUR or PIR sandwich panels is PPGI or PPGL steel color coated sheets.PPGI is prepainted galvanized coated steel and PPGL is prepainted Al-Zn coated steel.For coating type,you could choose PE, PVDF, HDP, SMP,ect.Our strategic cooperation brands are Bluescope, Bao-steel, Shougang steel, Guanzhou steel, Yieh Phui steel,Xinyu steel,etc.
2)Polyurethane core material:
Our polyurethane core material strategic cooperation brands are D·BASF, Huntsman, WANHUA, etc.
Features
1)Heat insulation
2) Durable-more than 30 years
3) Good quality- ISO 9001:2000
4) Waterproof and fireproof
5) Light weight
6) Cost-saving-the lowest price of sanwich panel
7) Environment protection- highly recommend by the government
8) Large span and most area saving
