Low-Cost Pre-Made Steel Structural Frame Prefab Factory with beam purlin

Prefab Light Steel Structual Warehouse for Workshop, Storage, Factory Prefabricated Steel Structure Building Prefab Steel Frame Factory Warehouse Low-Cost Pre-Made Steel Structural Frame Prefab Factory Modular Warehouse Steel Construction Structure Shop Factory Building Heavy Steel Skeleton Frame Prefab Steel Structure Warehouse
  • Lead Time:

    about 15-20workdays
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen, China
  • Payment:

    100%TT or LC at sight
  • Color:

    seablue, white or RAL color
  • Product Detail

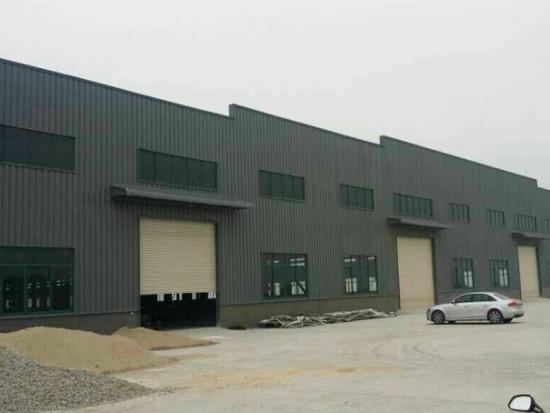

The steel structure warehouse is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure warehouse is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc.

Characters:

1,Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.

2,Low cost: unit price square meter FOB according to customer’s request.

3, Fast construction and easy in installation

4,Long term service life: more than 50 years.

5,Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.


steel structure warehouse

Main Frame Structure

Welded H Section Q235 or Q345

Wall and Roof Purlin

C/Z Section Channel, C/Z PURLIN  (Galvanized Q345 Z275)

Roofing Cladding

Sandwich roof panel or Corrugated Steel Sheet

Wall Cladding

Corrugated Steel Sheet/Sandwich Wall Panel

Tie Rod

Circular Steel Tube

Brace

Round Steel Bar

Column & Transverse Brace

H Section Steel /Angle Steel/Steel Pipe

Knee Brace

Angle Steel

Roof Gutter

Color Steel Sheet

Rainspout

PVC Pipe

Door

Metal Door Metal Curtain Door/Sliding Door

Windows

Plastic Steel/PVC/Aluminum Alloy Window

Connecting

High Strength Bolts

Packing

Standard Seaworthy Packing

C/Z purlin for warehouse

Steel structure design common norms are as follows:

"Steel Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

Commonly used steel grades and performance of steel

Carbon structural steel: Q195, Q215, Q235, Q255, Q275, Q345,etc.

High-strength low-alloy structural steel

Quality carbon structural steel and alloy structural steel

Special purpose steel

steel structure factory

Below info needed for the quotation:

Project Name

steel structure warehouse

Size

total length and width, roof and eave height, roof pitch, etc

Roof and Wall

option: EPS, fiber glass, rock wool or PU sandwich panel

Door and Window

PVC or Aluminum alloy; sliding door or rolled door

Column and Beam

option:hot rooled or welded H section, I section; painting or galvanized

Purlin

option:C-Section or Z-section

Local Climate

1.wind speed
2.snow load
3.rain quantity
4.earthquake grade if have
More details is preferred.

Crane Parameter

 If need crane beam, crane tons parameter and lift height are needed

Drawing

 1. according to clients' drawing

 2. design as per clients' dimension and requests

Package

Naked loaded in shipping container or as per requests.

Loading

 20 GP,  40HP, 40 GP,  40 OT

loading photos
