Steel roofing sheet is made from galvanized or pre-painted corrugated steel sheet.
It is a component of the building envelope. Steel roofing can be used for residential and commercial buildings.
| Material | CGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D |
| Thickness | 0.3-0.8mm |
| Width |
750-1250mm(before corrugation) 600-1100mm(after corrugation) |
| Length | 1000-3500mm or as require |
| Coating type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) |
| Painting Thickness | Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12- 20 um) back: 7 +/- 2 um |
| Pallte Weight | 3-5 Tons |
| Annual Output Quantity | 350,000MT |
| MOQ | 25 tons or one container |
| Payment | T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
|
|
|
| Color chart | RAL color number |
| Application | exterior and interior wall,roofs,and soffits |
Characteristic:
(1) Attractive and beautiful appearance, rich colors be chosen, combination flexible, can be expressed in different architectural styles.
(2) Lightweight(6~10kg/m2) and high strength(yield strength250~550MPa), with excellent features of waterproof, shockproof.
(3)Convenient construction and installation, reduce installation, transportation workload, shorten the construction period.
(4)Raw material steel sheet is part of green building material, recyclable.
Application:
Widely used in power plants, factories, warehouse, office, airport terminals, railway stations, stadiums, supermarkets, logistic centers and other steel structure constructions.

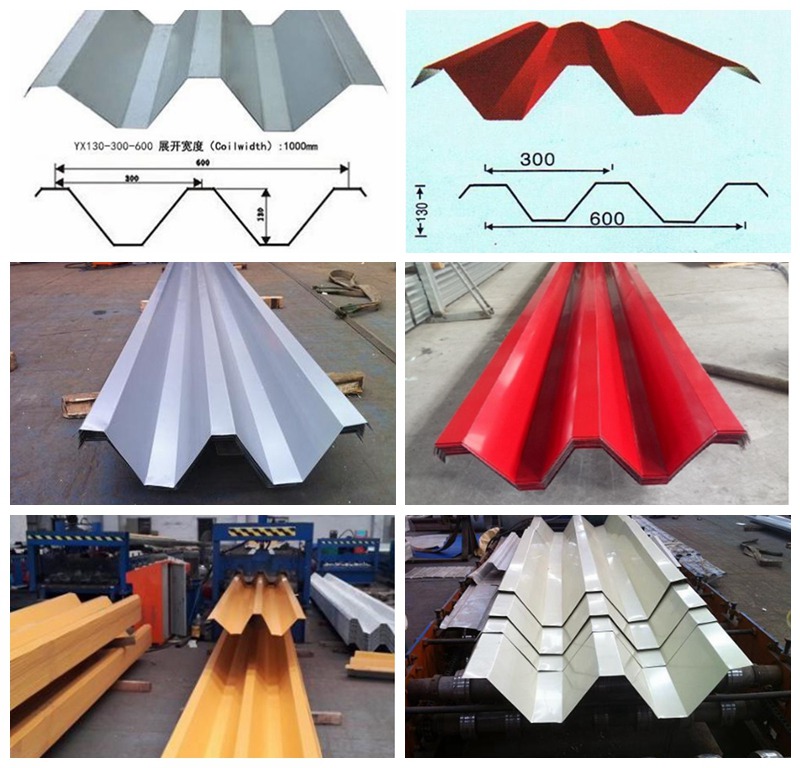

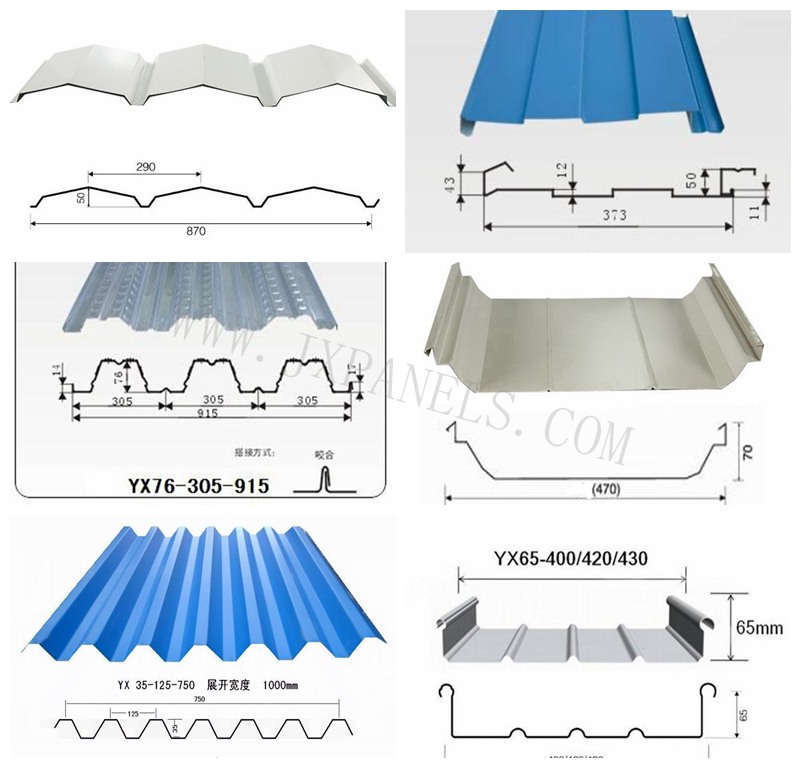

More other type of roofing sheet
