Steel roofing sheet is made from galvanized or pre-painted corrugated steel sheet.

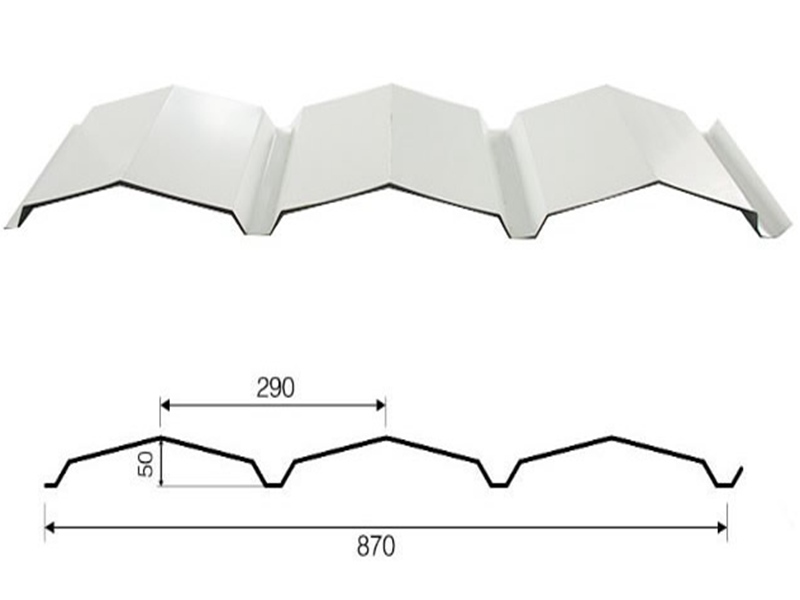

It is a component of the building envelope. Steel roofing can be used for residential and commercial buildings. YX50-290-870 has good effect on roof ceiling/wall and quick installation, only screws to fix on purlin.
Used color-coated steel plate, by roll cold-formed into a variety of wave pressure plate. It is suitable for roof, walls and interior and exterior decoration on industrial, civil buildings, warehouse, special construction and large span steel structure housing. With characteristic of lightweight , high strength, convenient construction, shockproof, fireproof, rain, long life, maintenance-free etc., now is been widely used.
|
Model |
YX50-290-870 |
||
|
Effective width(mm) |
870 |
||
|
Feeding width(mm) |
1000 |
||
|
Rib Height(mm) |
15 |
||
|
Material |
Galvanized Steel |
||
|
Life Span(Year) |
15-20 |
||
|
Finish |
RAL5012 Sea blue |
||
|
Brand |
SXGG |
||
|
Steel Grade |
Q235 |
||
|
Standard |
GB |
||
|
Application |
Roof ceiling, wall |
||
|
Thickness |
0.6 |
0.8 |
1.0 |
|
Section Inertia(cm4/m) |
13.48 |
17.97 |
26.96 |
|
Section Resistance(cm3/m) |
4.39 |
5.84 |
7.28 |
Characteristic:
(1) Attractive and beautiful appearance, rich colors be chosen, combination flexible, can be expressed in different architectural styles.
(2) Lightweight(6~10kg/m2) and high strength(yield strength250~550MPa), with excellent features of waterproof, shockproof.
(3)Convenient construction and installation, reduce installation, transportation workload, shorten the construction period.
(4)Raw material steel sheet is part of green building material, recyclable.

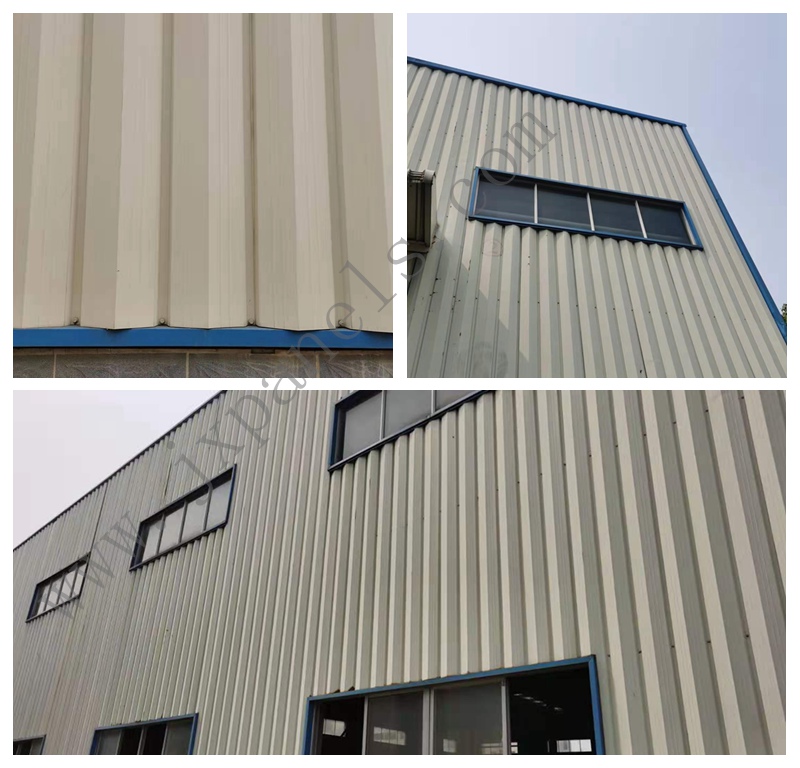

Application:
Widely used in power plants, factories, warehouse, office, airport terminals, railway stations, stadiums, supermarkets, logistic centers and other steel structure constructions.
