Rockwool sandwich panel and its manufacturing process is one the most advanced inventions, which in the factory automation equipment, rock wool and steel into a whole, thus changing the way of the rock wool plate before the compound required site , under the premise that meet the requirements of the building thermal insulation, sound insulation, fire protection, to achieve a high quality, efficient, reliable, safe target.

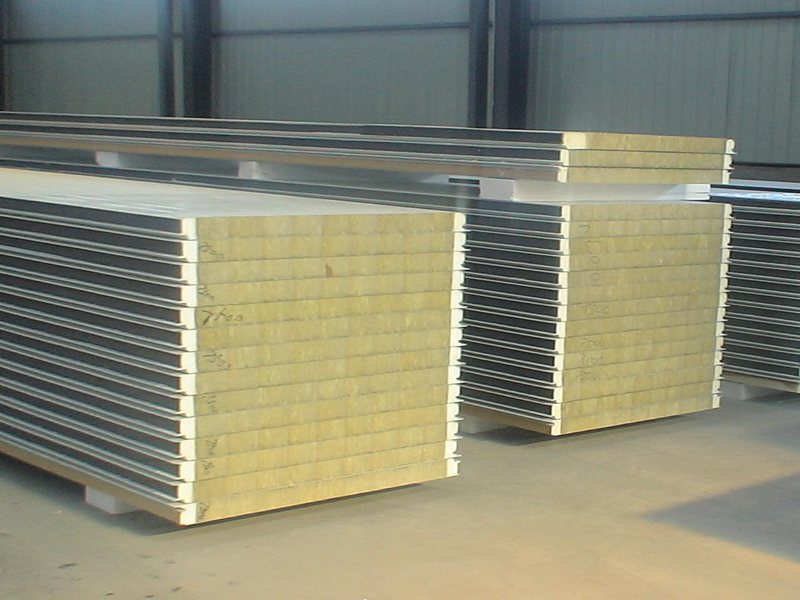

The up & down surface of this rockwool panel is Galvanized & Pre-painted steel sheets, core material is 5 components rockwool glue, it is formed by heating, foaming & laminating. Rockwool is the best material for temperature keeping and sound insulation. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.
Applications
The sandwich panels can be used in large industrial plants,warehouses,supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place. Commercial housings in the cities, such as exhibition halls, shopping centers, offices and other housings for exhibition and sports.The temporary facilities in the construction site, such as office, warehouse.
Product Description of Sandwich panel:
Cover Width: 950mm
Length: Customized but no more than 11.8meter usually.
Up color steel board thickness: 0.4mm to 0.7mm
Low color steel board thickness: 0.4mm to 0.7mm
Total thickness: 50mm,75mm,100mm,120mm, 150mm,
Coated materials: Zinc or aluminum alloy, 60-120G/M2
Fillings: EPS, PU, fiber glass or rock wool
Steel Grade: Q235
Steel color: white, Blue or RAL color
